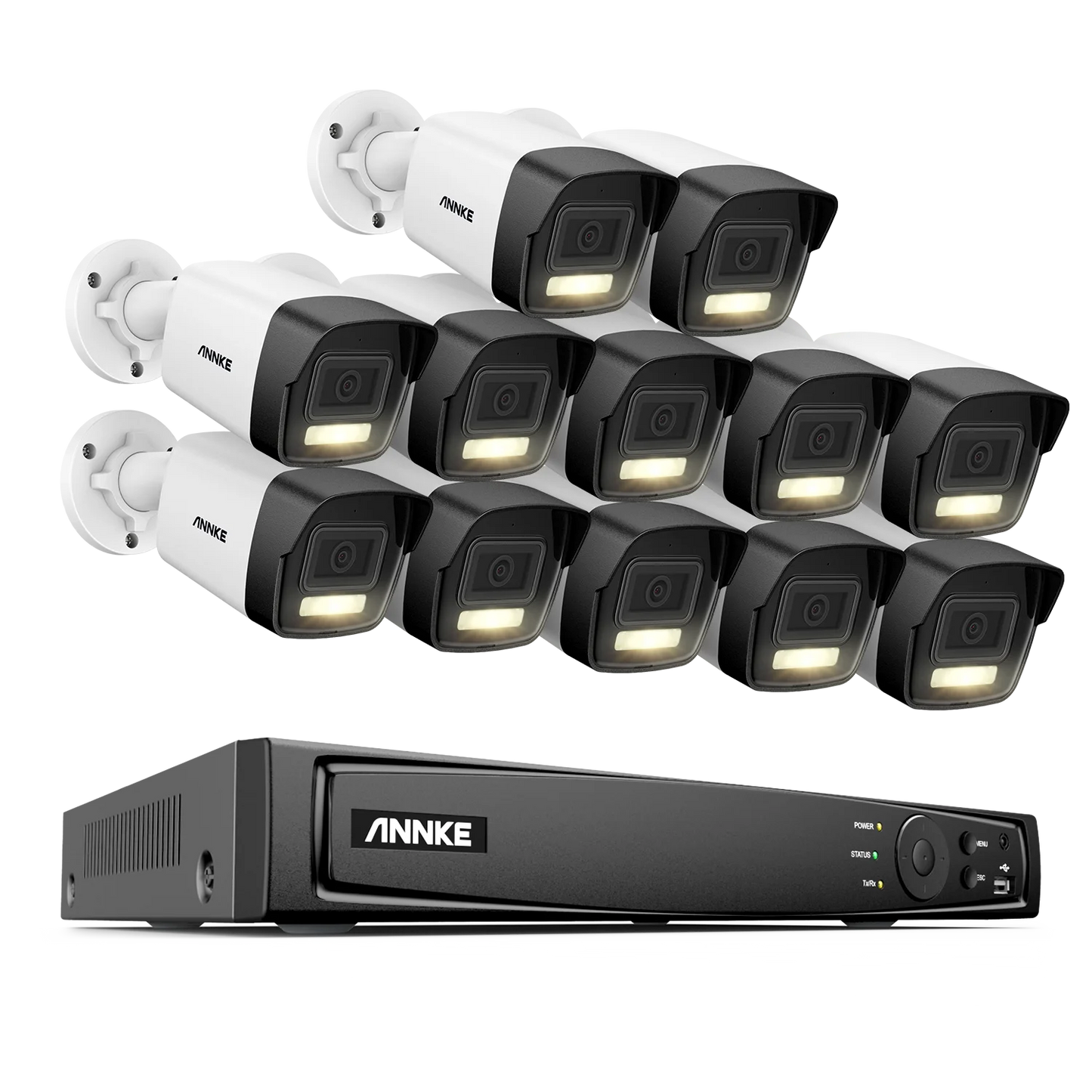

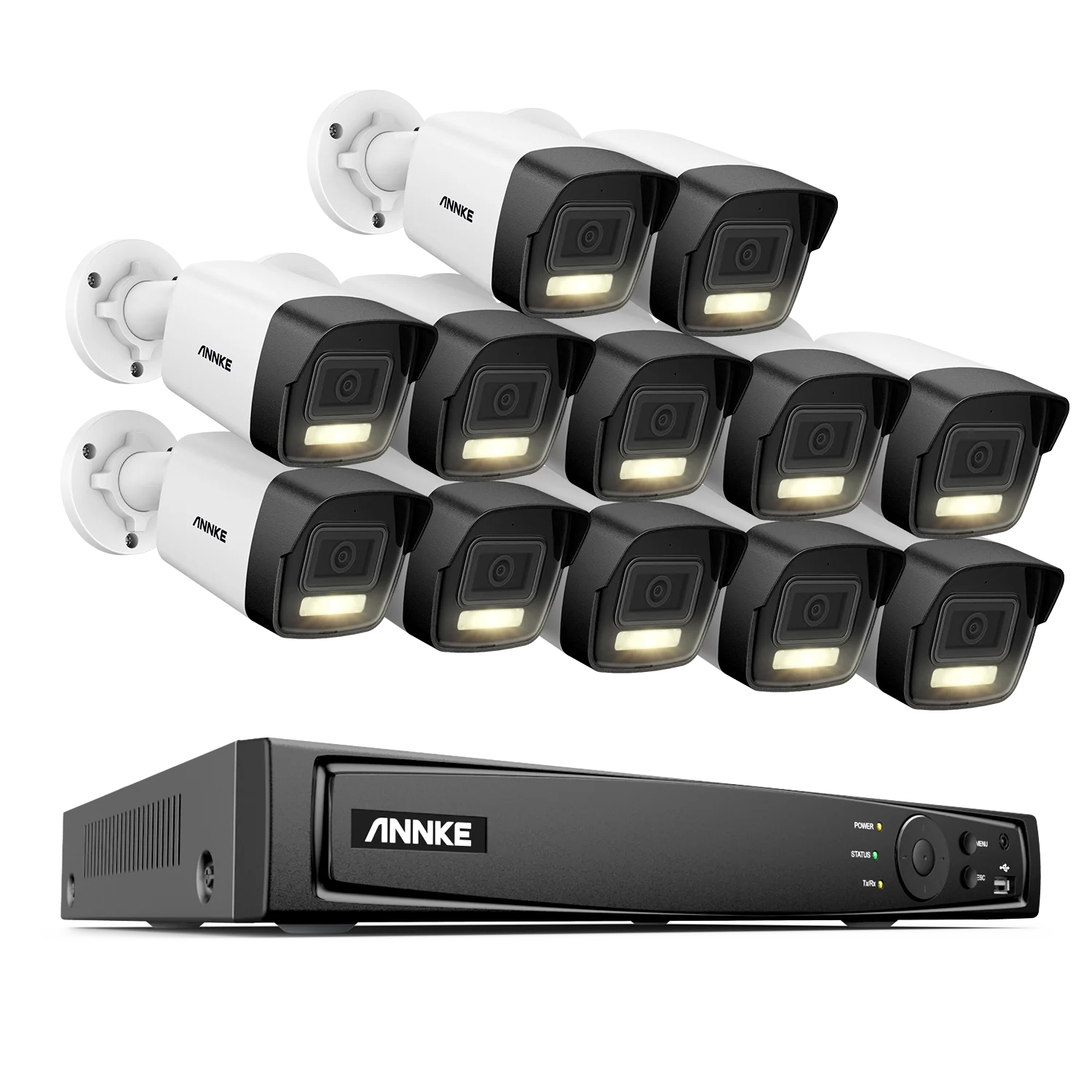

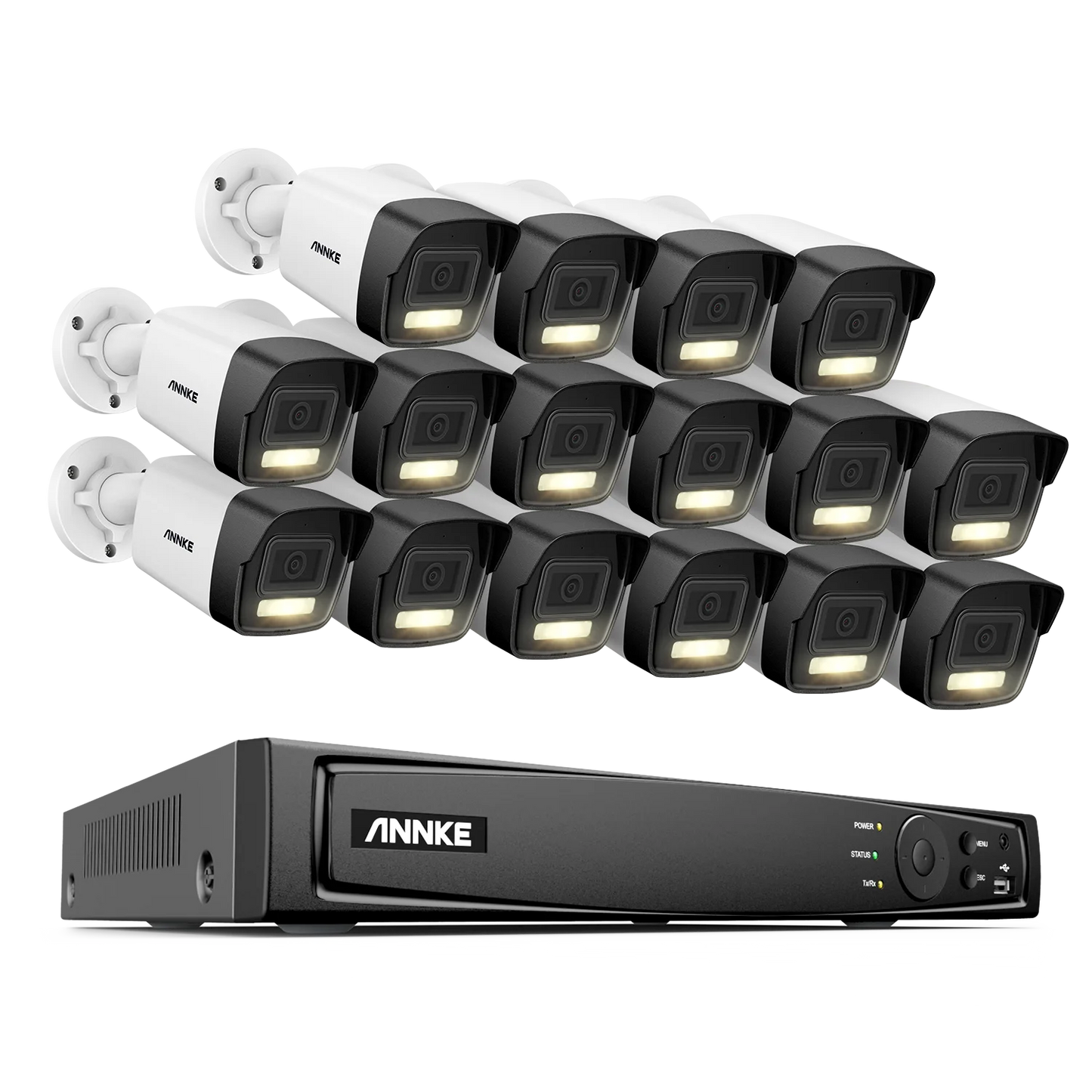

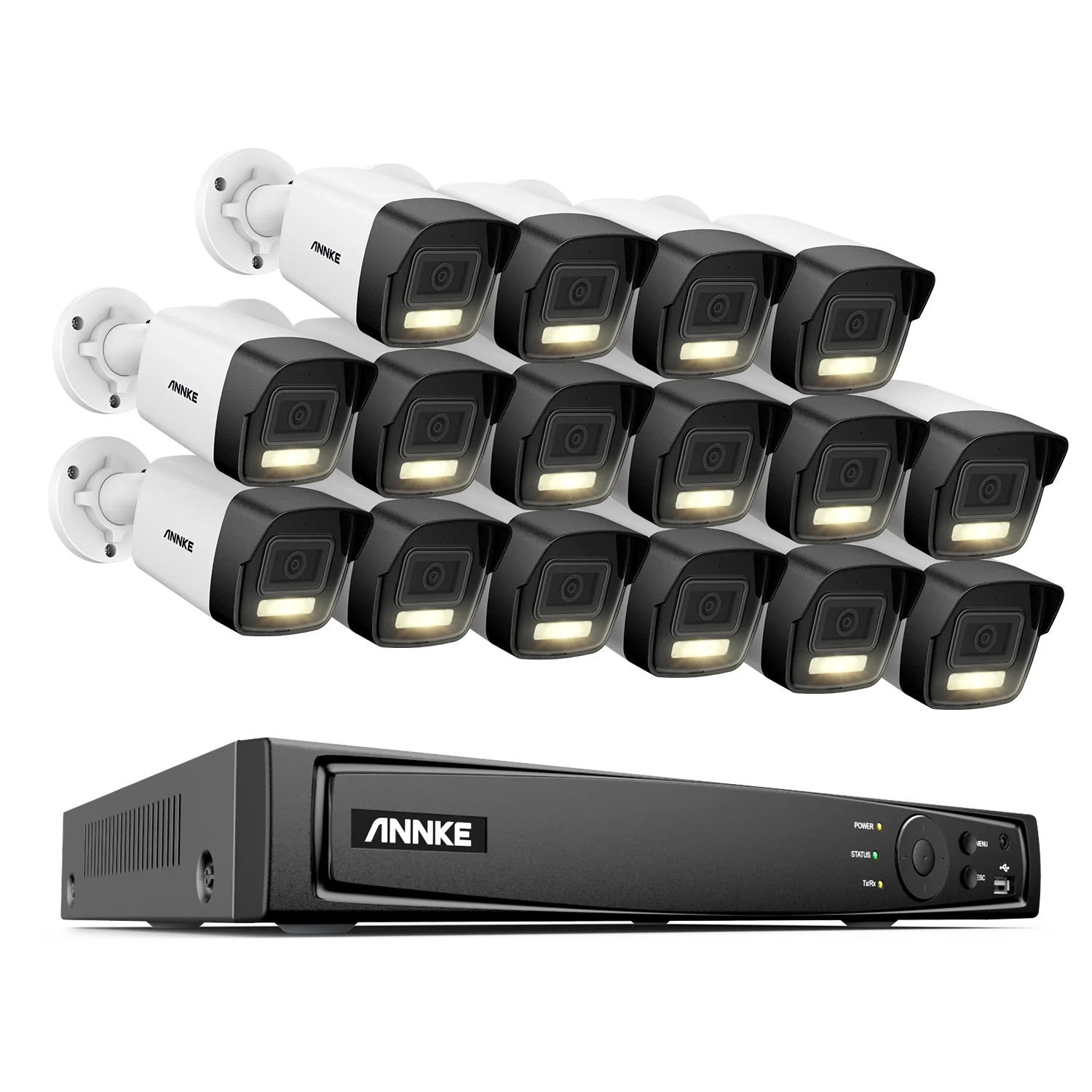

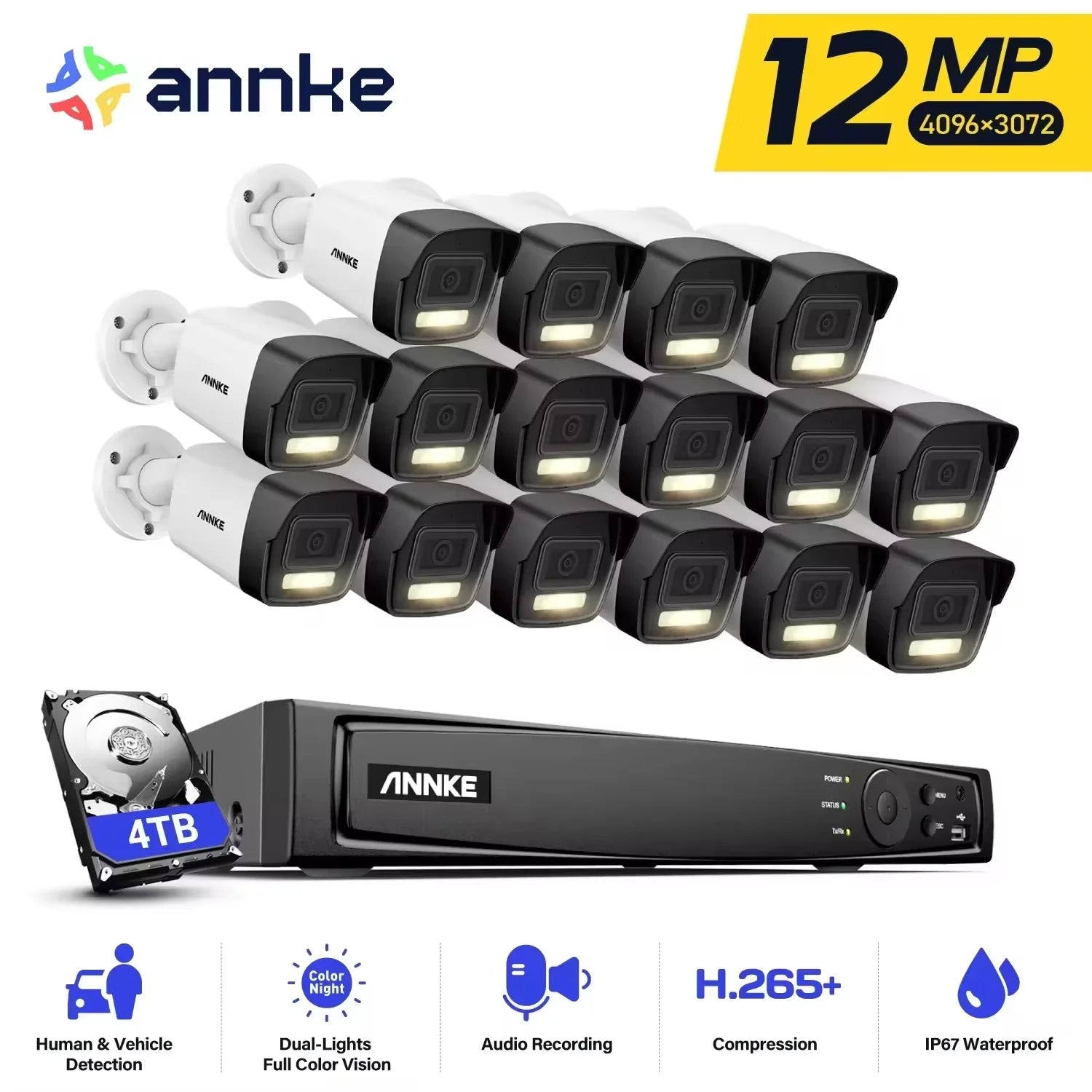

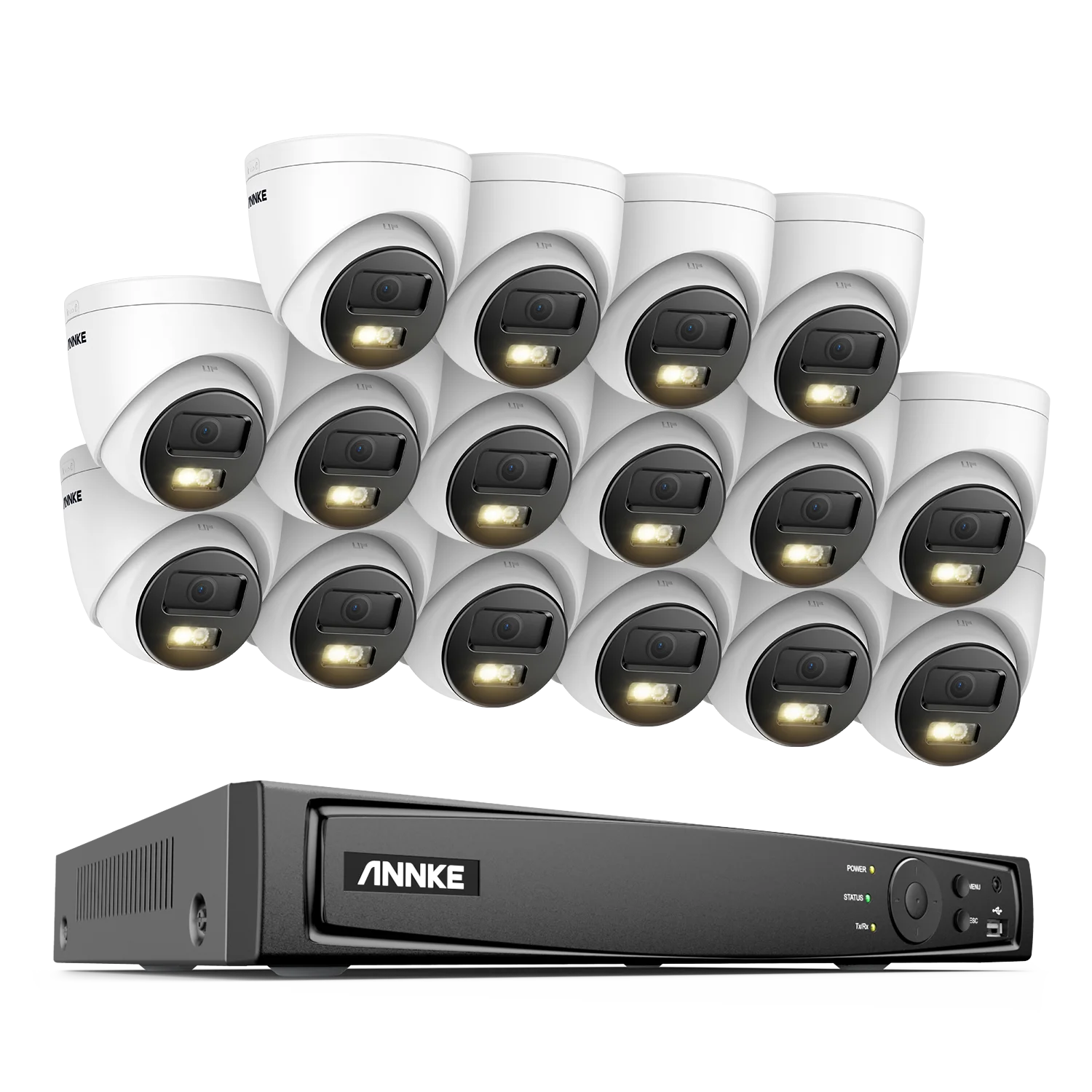

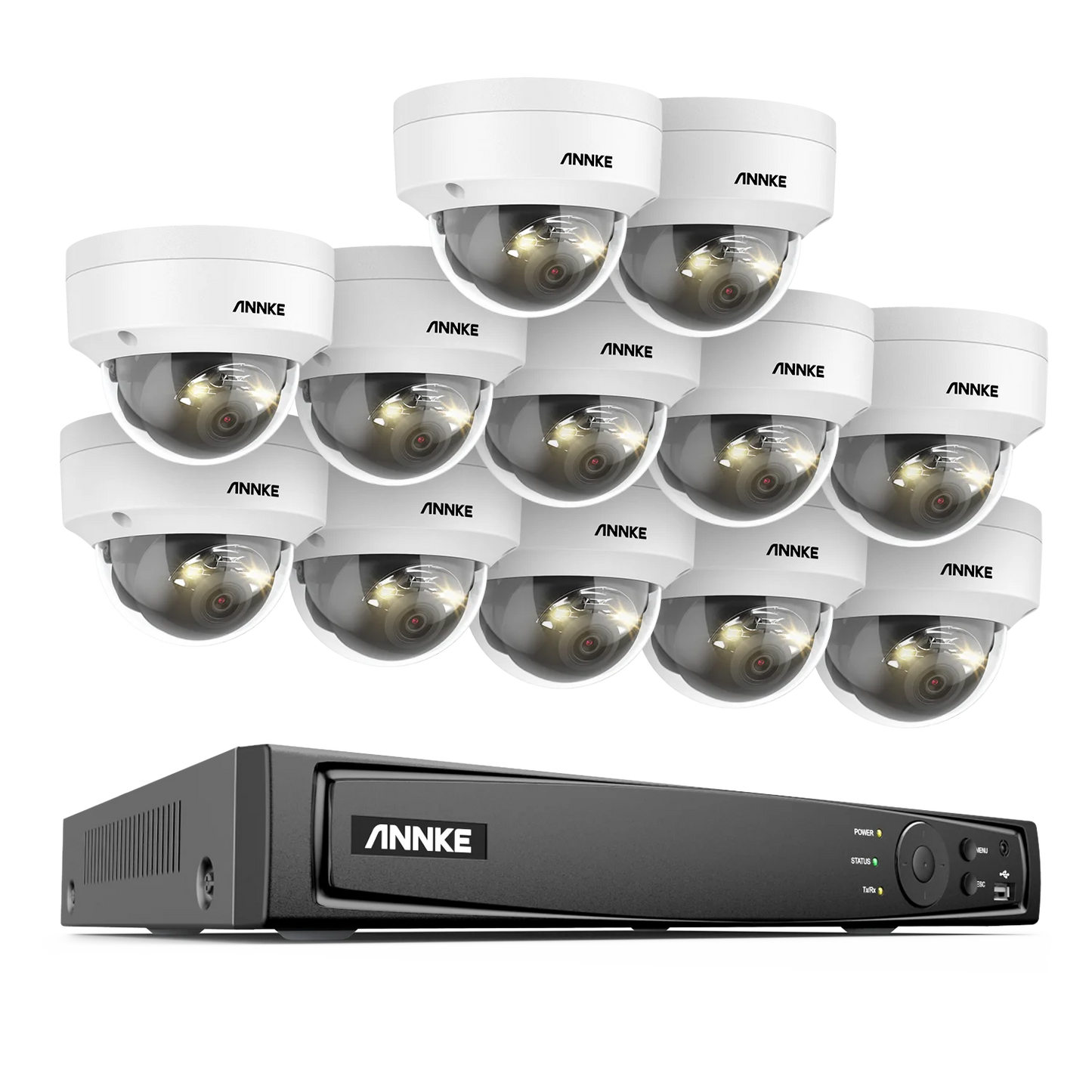

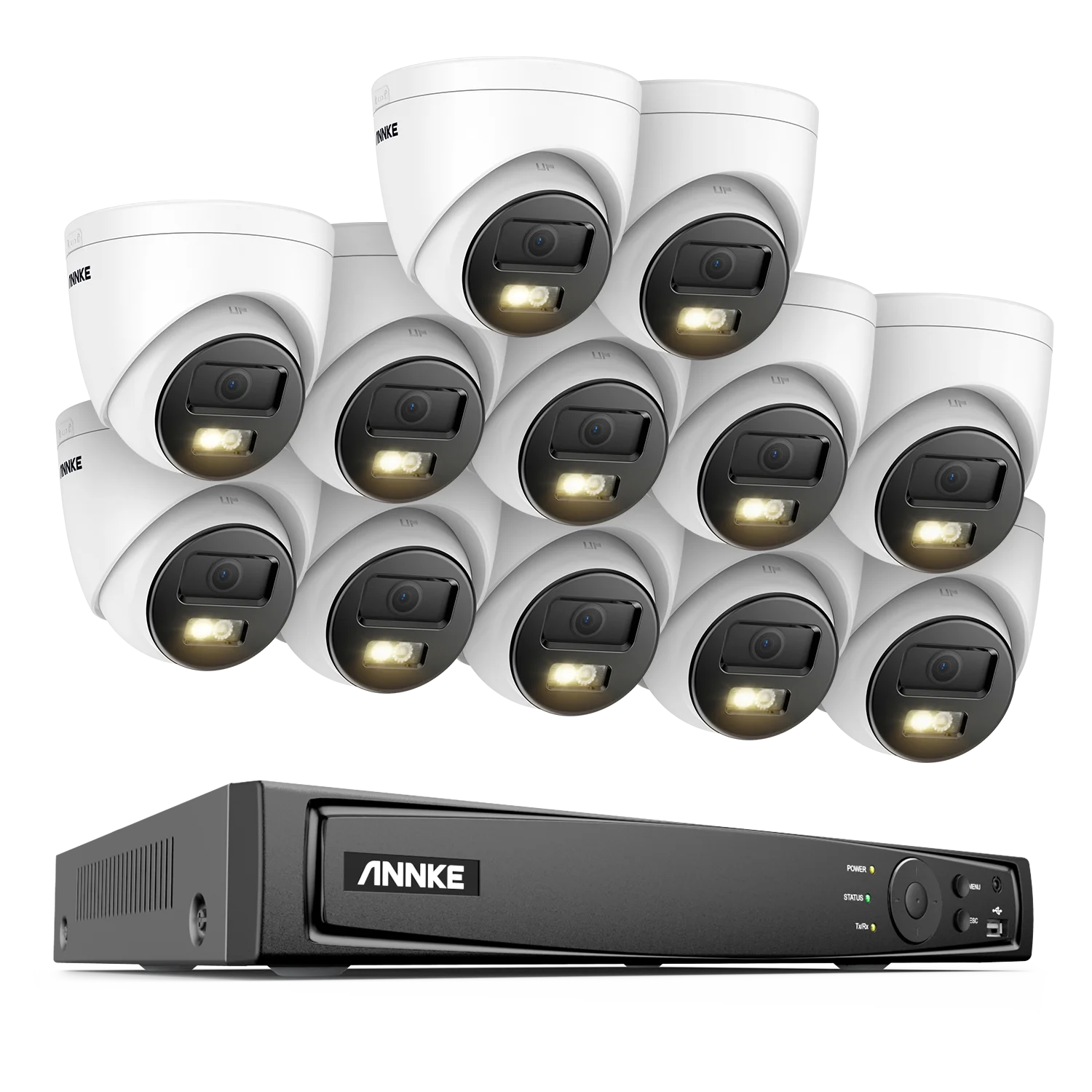

ANNKE 16 Channel NVR 12MP HD IP Security Camera System
ANNKE 16 Channel NVR 12MP HD IP Security Camera System
Couldn't load pickup availability

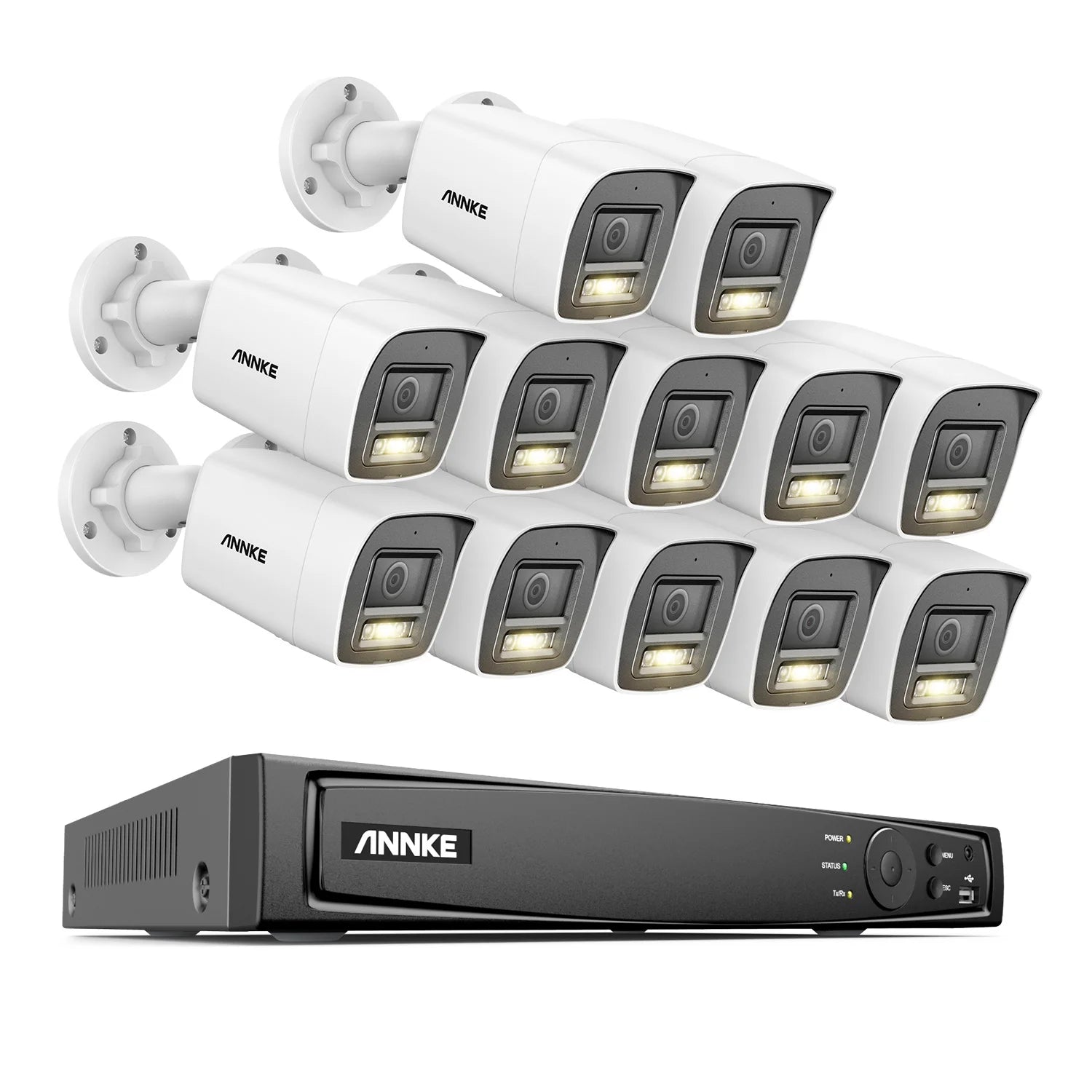

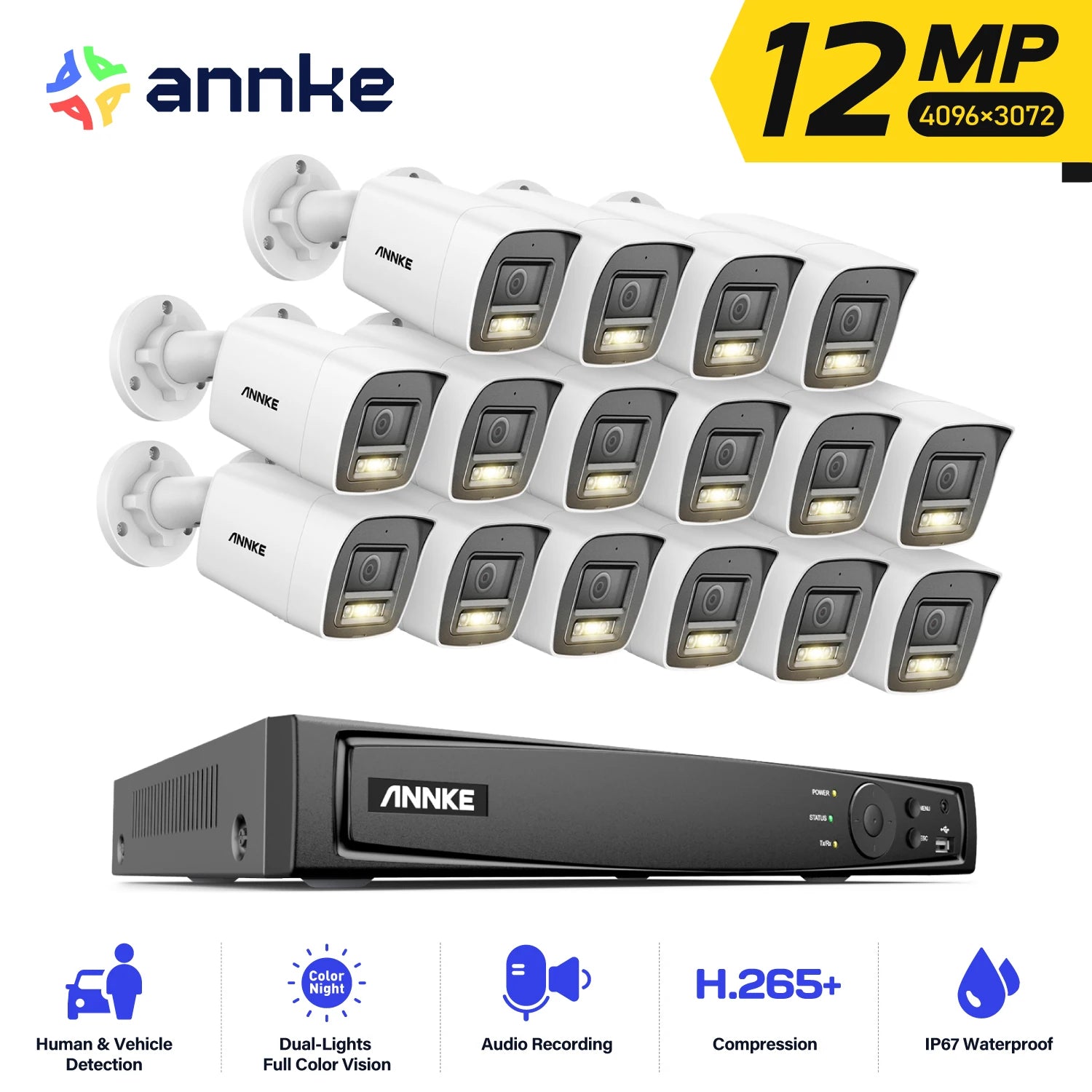

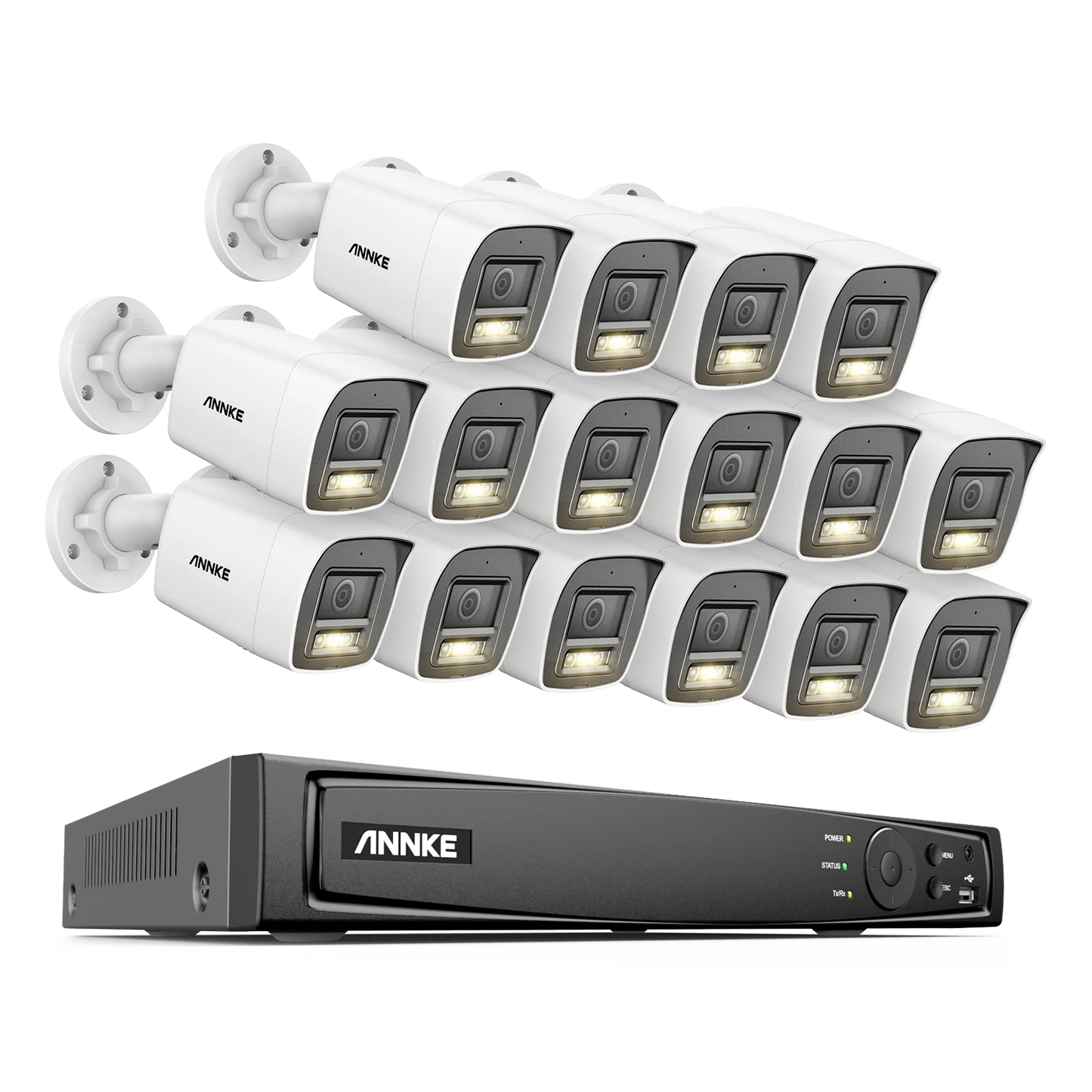

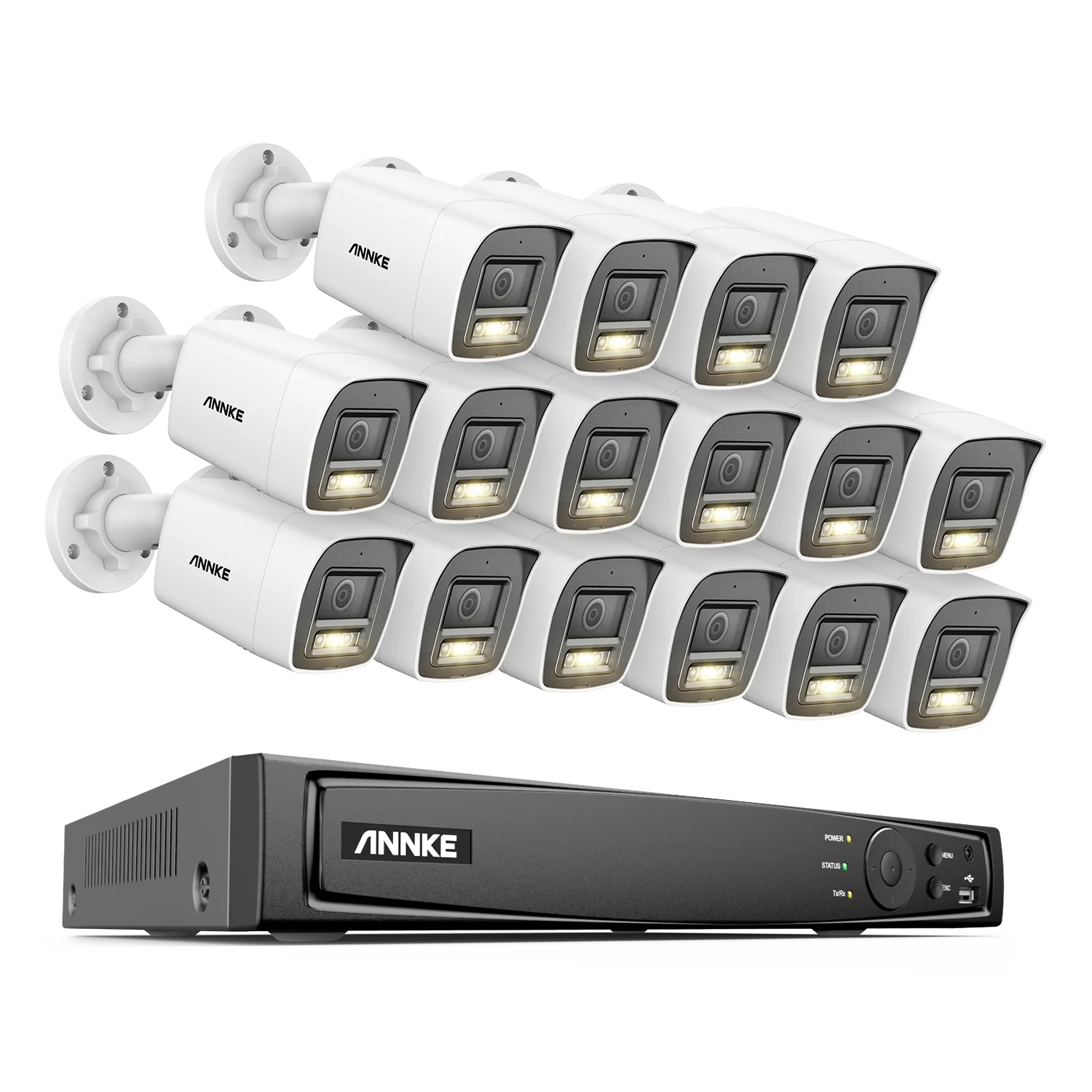

Experience high-detail, scalable security with the Annke 16CH NVR system, delivering 16 PoE cameras in a single, easy-to-manage package.
- 16-channel NVR with 16 camera inputs for scalable surveillance and centralized recording, plus a single interface for quick viewing, playback, and management.
- Up to 8 MP live view and playback to capture high-resolution detail when you need it, supporting clear evidence and fast identification.

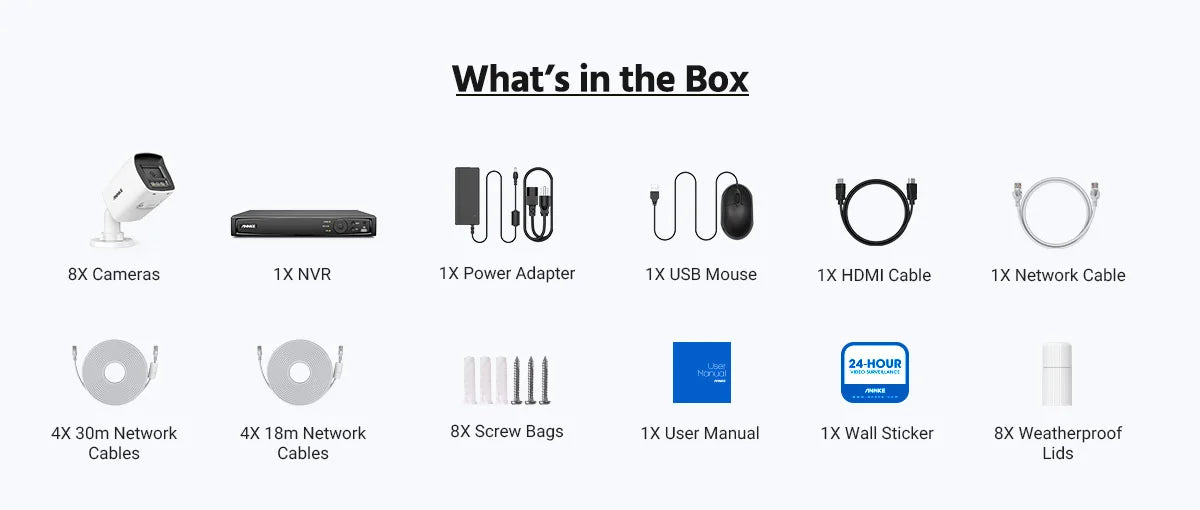

- PoE cameras simplify installation with single Ethernet cables; includes options for 30m and 18m runs to fit your space.

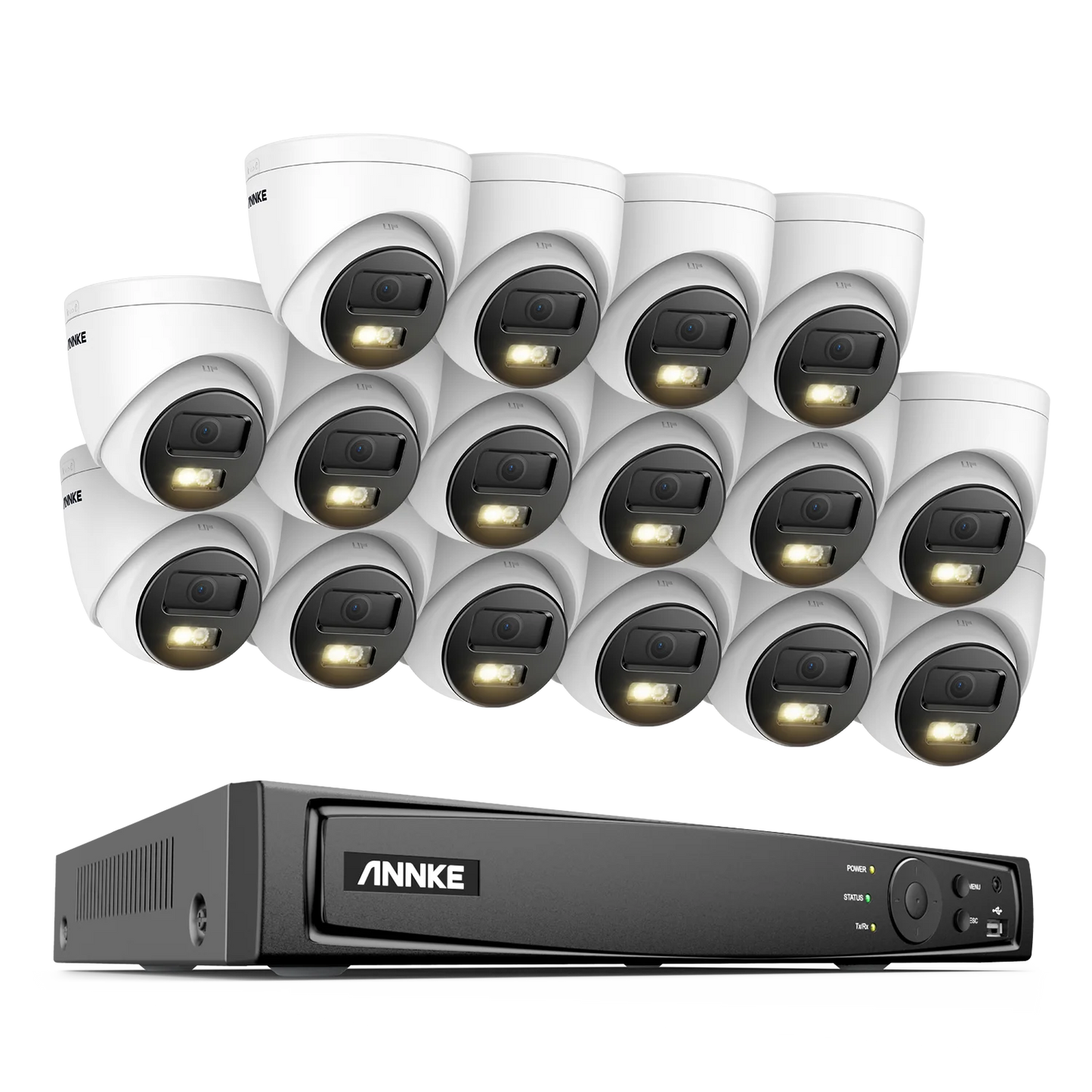

- Includes 16 cameras ready for immediate protection, designed for versatile placement indoors or outdoors, with NTSC/PAL compatibility for reliable operation.

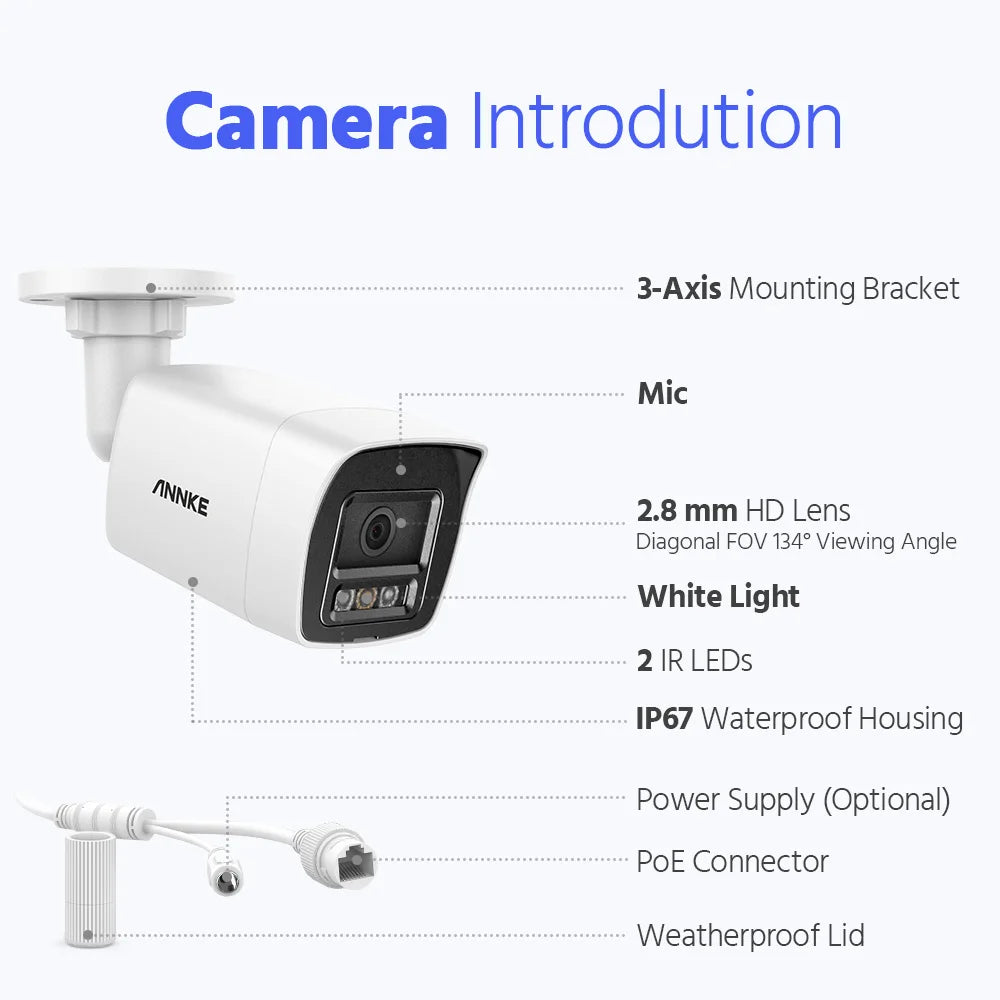

IP Camera | ||
Camera | Image Sensor | 1/2.7" Progressive Scan CMOS |
Max resolution | 4096*3072(12MP) | |
Main Stream | 50 Hz: 10 fps@4096*3072, 12.5 fps@(3840*2160, 3200*1800, 2688*1520, 1920*1080, 1280*720) | |
Substream | 50 Hz: 12.5 fps (1280*720, 640*480, 640*360) | |
Video Compression | Main stream: H.265+/H.265/H.264+/H.264 | |
Video Bitrate | 32 Kbps - 16 Mbps | |
Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC | |
Audio Input | Built-in Microphone, record with audio | |
Lens | 2.8 mm | |
Min. Illumination | Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR | |
Angle of View | Horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134° | |

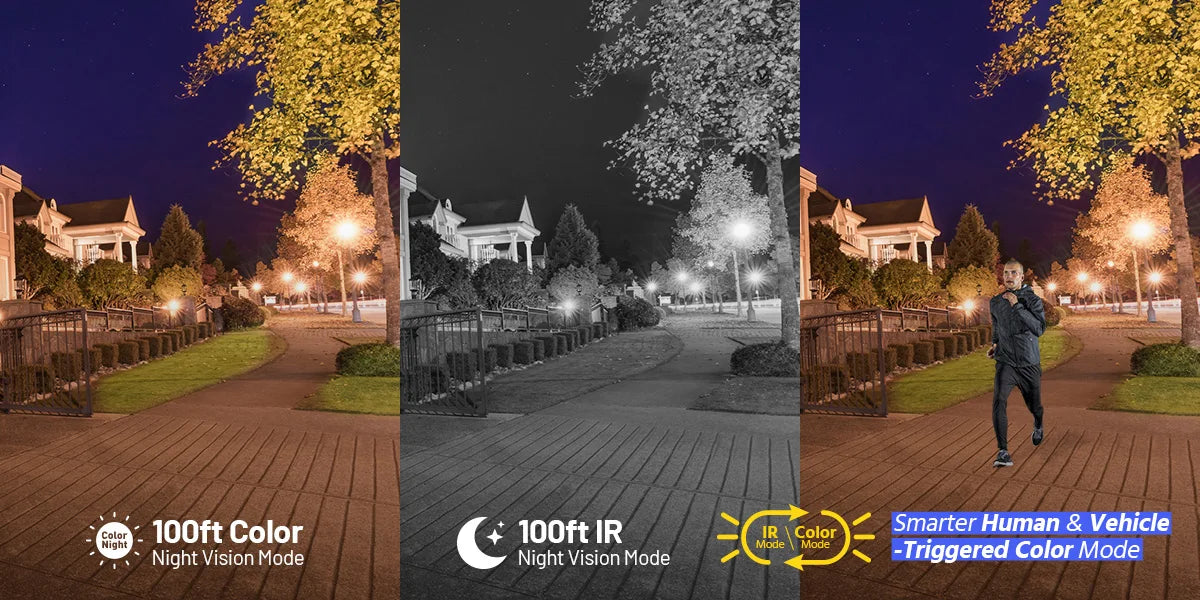

Supplement Light Type | Smart Dual-Light, IR, White Light | |
Supplement Light Range | Up to 30 m | |
Motion detection 2.0 | Supoort, include Human & Vehicle detection | |
Image Enhancement | BLC, HLC, 3D DNR | |
Wide Dynamic Range | 120 dB WDR | |
Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP | |
API | Open Network Video Interface Version 19.12 (Profile S, Profile T, Profile G) | |
Region of Interest (ROI) | 1 fixed region for main stream | |
Privacy Mask | 4 programmable polygon privacy masks | |
General Function | Rotate mode, mirror, password protection, remote access | |
Ethernet | 1 RJ45 10 M/100 M self-adaptive Ethernet port | |
General | Housing | Metal & Plastic |
Color | White & Black | |

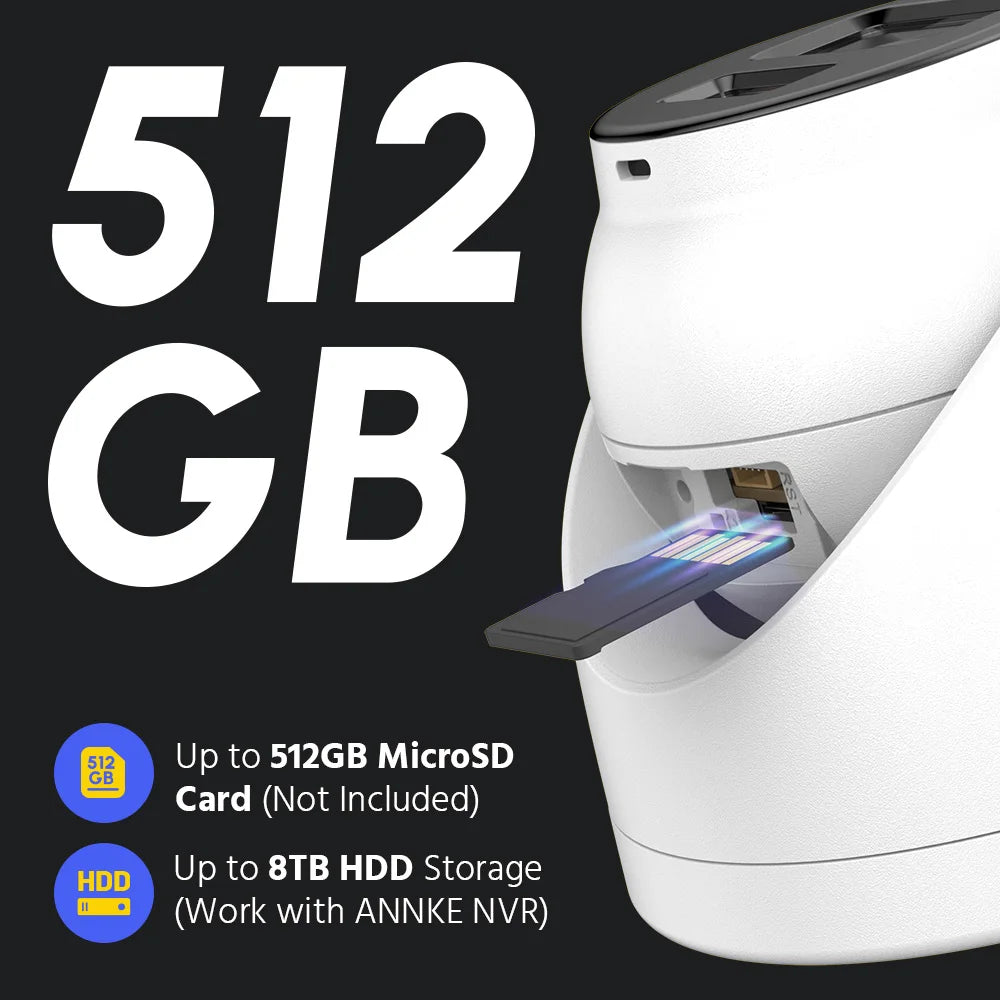

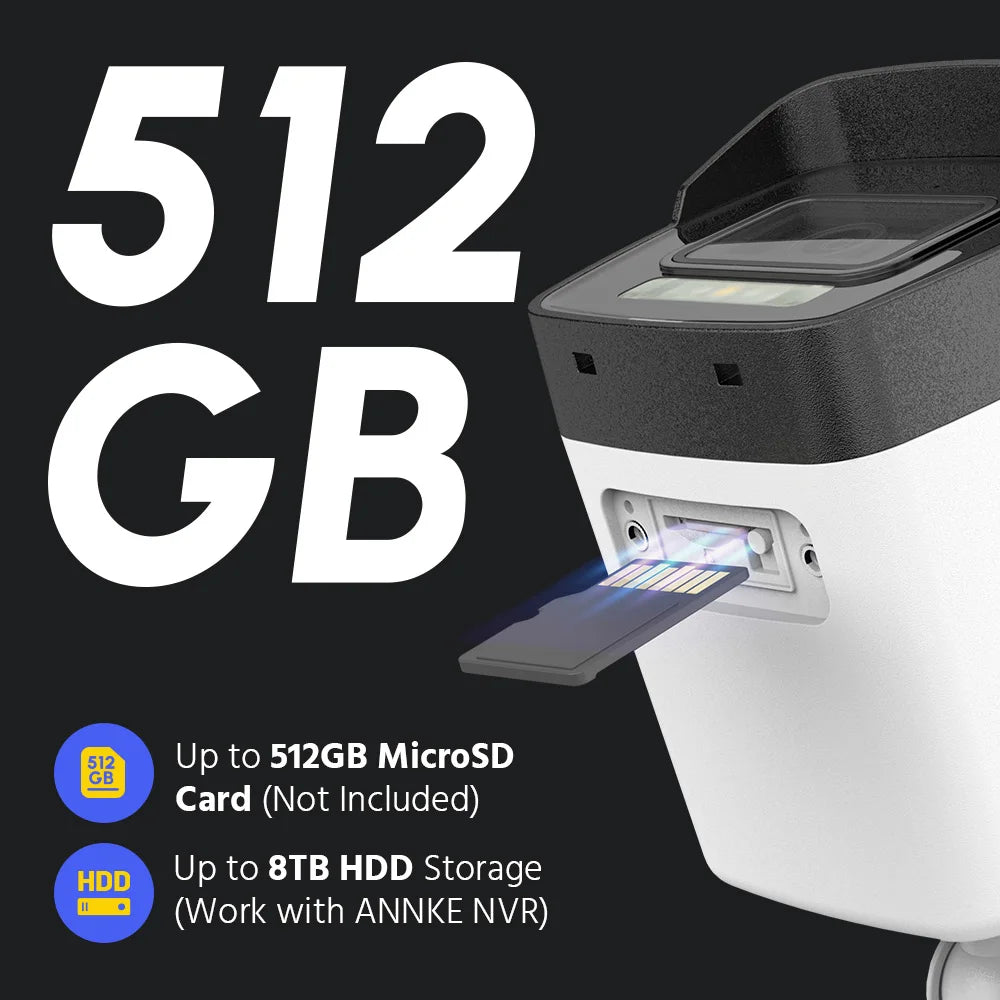

Storage | Built-in microSD/SDHC/SDXC Slot, up to 512 GB | |
Hardware Reset | Yes | |
Operating Power | DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W | |
Operating Temperature | -22 °F – 140 °F/-30 °C – 60 °C | |
Indoor/Outdoor Use | Indoor/Outdoor | |

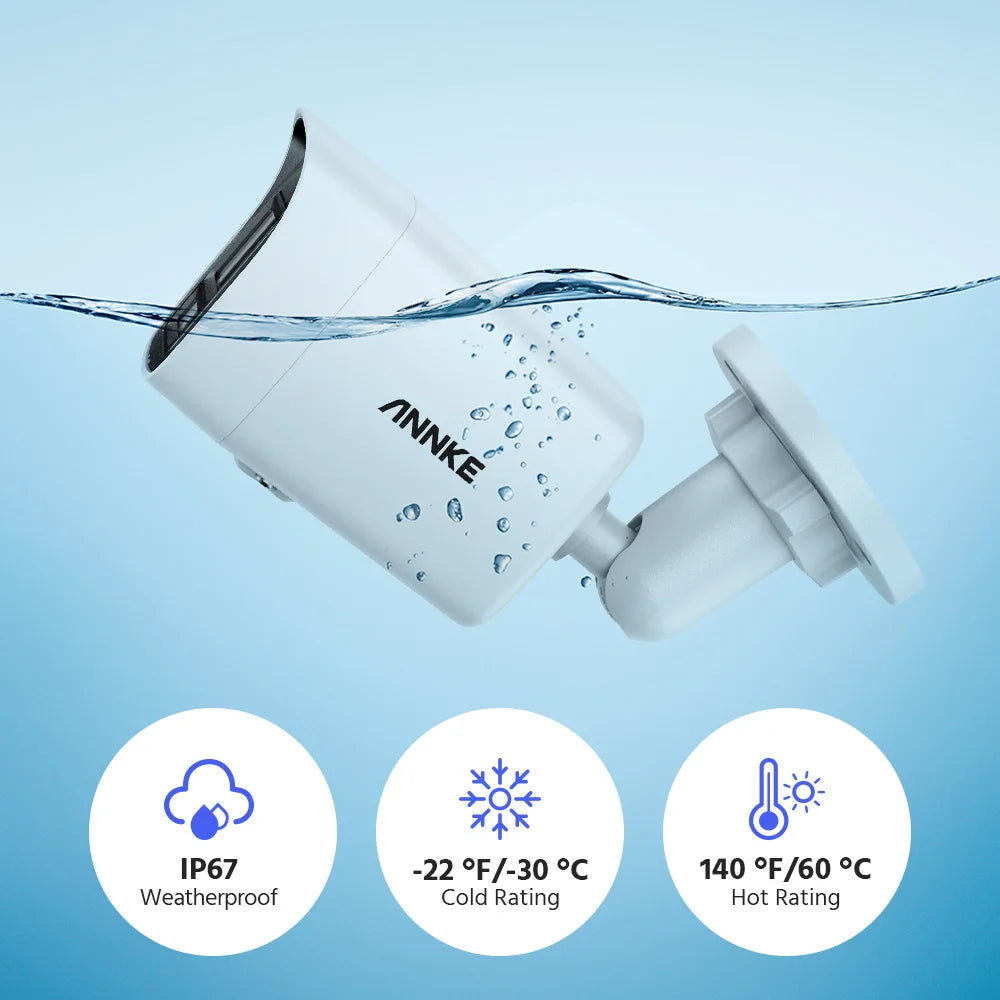

Interface Protection | IP67 | |
Dimension (L X W X H) | 170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7") | |
Weight | 0.6 lb./285 g | |

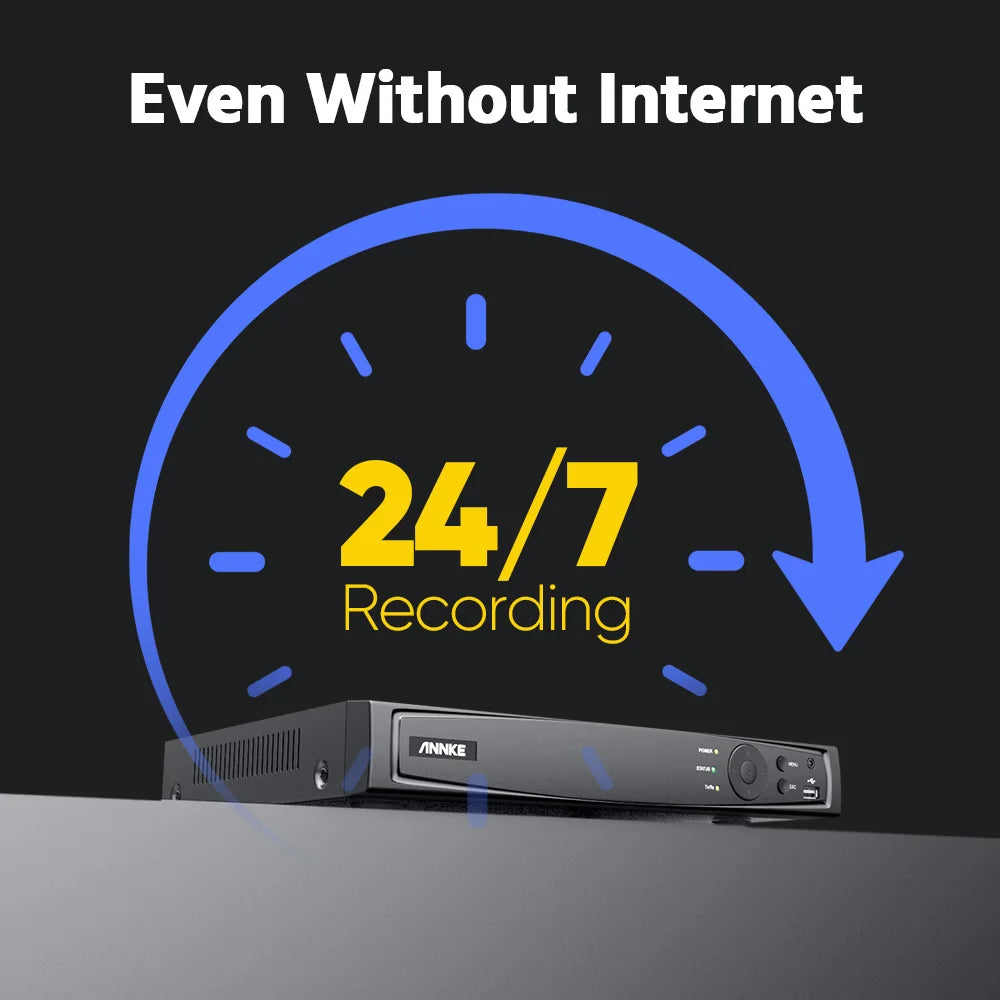

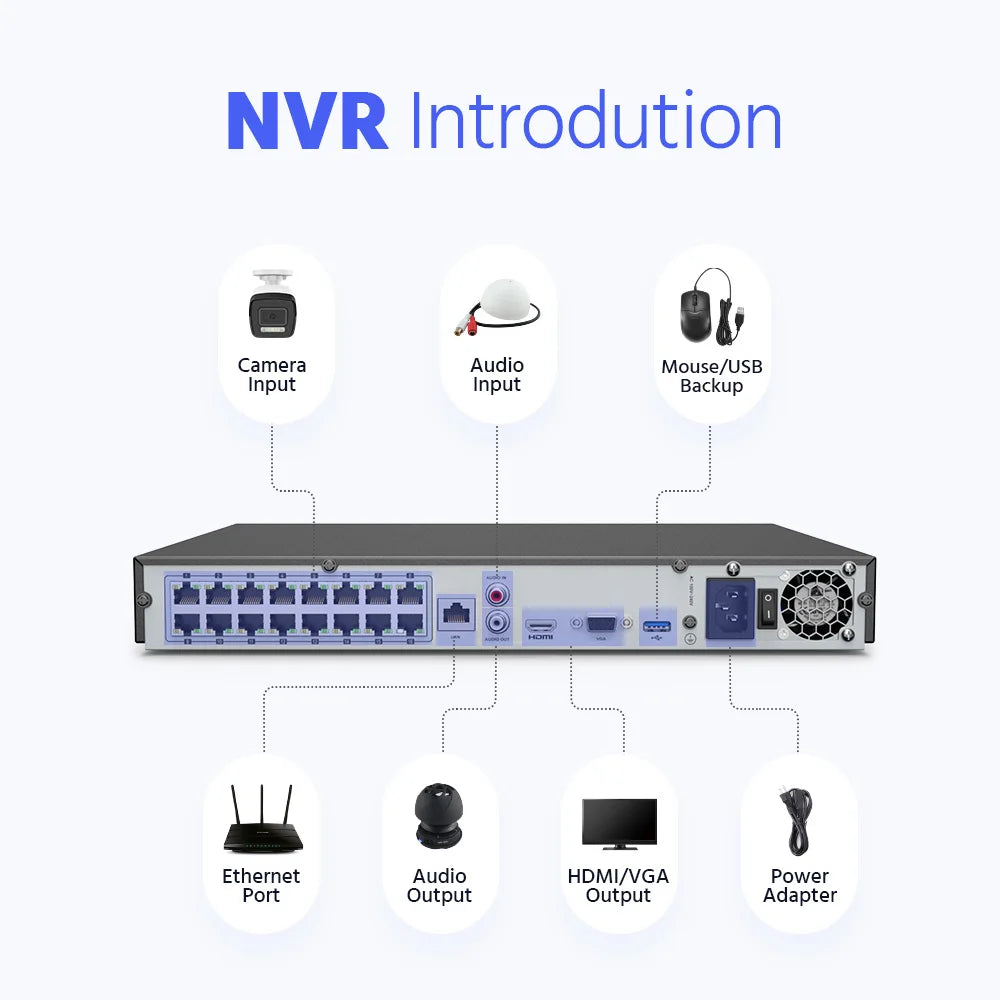

NVR | ||
Video & Audio | Video Compression | H.264+/H.264/H.265/H.265+ |
IP Video Input | 16CH PoE | |
Video Output | HDMI up to 4K, VGA up to 1080p | |
Audio Input/Output | 1/1 RCA | |
Incoming/Outgoing Bandwidth | 160/80 M | |
Max. Recording Resolution | Up to 8MP (3840 X 2160)@30fps(Frame rate depends on IP camera) | |
Max. Playback Resolution | Up to 8MP (3840 X 2160)@30fps(Frame rate depends on IP camera) | |
Max. Playback Channel | 16CH | |
Max. Playback Capacity | 1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) | |
Hard Drive | HDD | 2 SATA Interface |
HDD Capacity | Up to 8 TB Capacity for each disk | |
| Network Interface | RJ45 X1 (10/100/1000 M) |
PoE | 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface, IEEE 802.3 af/at | |
USB | 2X USB 2.0 | |
Smart Function | Deep learning | 16-ch Human and vehicle targets detection(Need IP camera support) |
4-ch Human and vehicle targets detection(IP camera does not need to support this function but the resolution cannot exceed 4MP) | ||
Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting | |
General | Operating Power | AC 100-240 V |
Power Consumption | ≤15 W (Without HDD and PoE) | |
PoE: Max. 25.5W for Single Port | ||
Working Temperature | 14 °F — 131 °F/-10 °C — 55 °C | |
Dimensions (W X H X D) | 15.2” X 12.4” X 2.0”/385 X 315 X 52 mm | |
Weight (Without Hard Disk) | 6.6 lbs./3 kg | |
