ANNKE 8Channel 12MP PoE NVR Network Video Recorder Solution

$190.99 USD

~~$0.00 USD~~ $190.99 USD

Sale Sold out

Shipping calculated at checkout.

Video Input 8CH 16CH

Ships From United States

Build-in HDD 2T 4T 1T

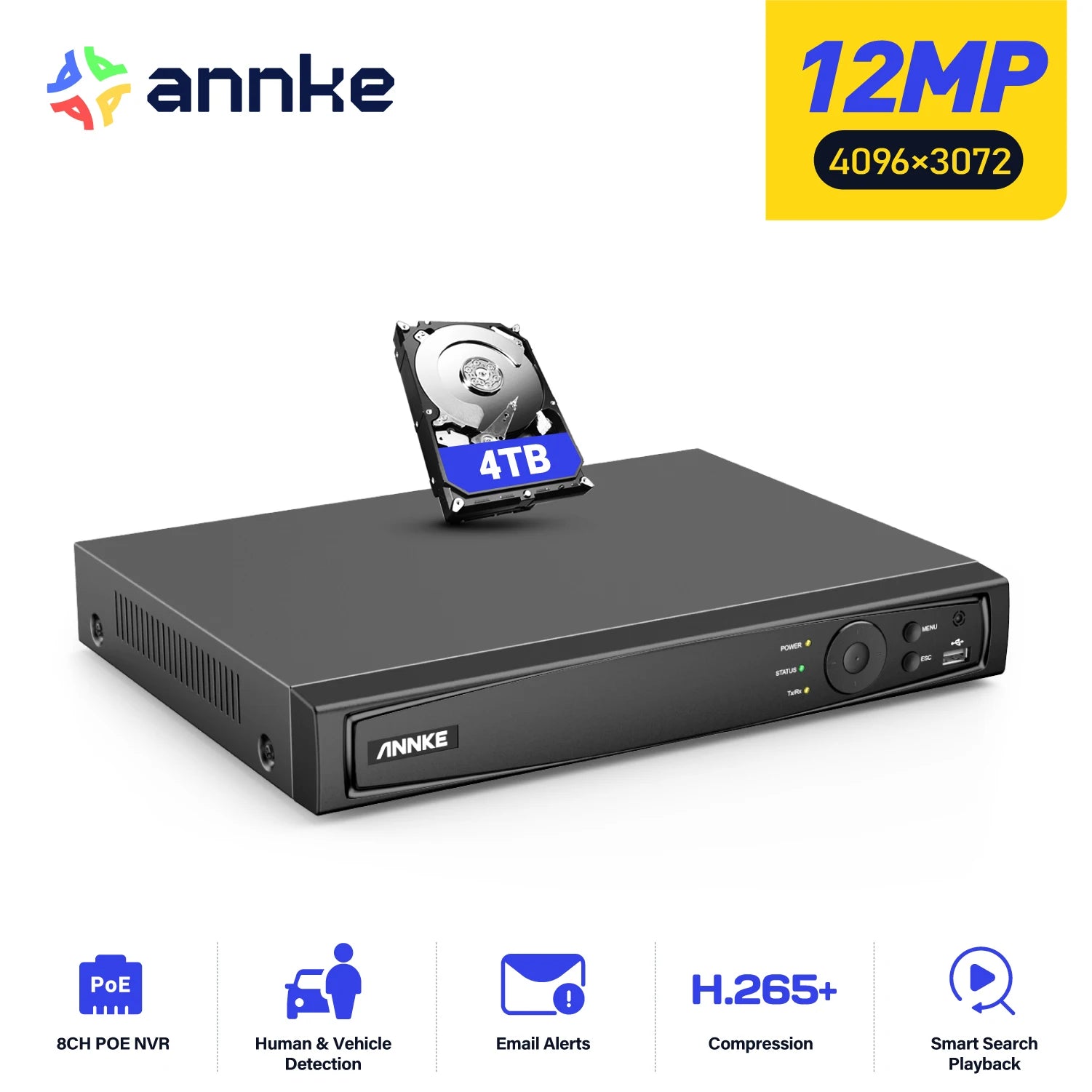

Elevate your security setup with the ANNKE 8-Channel 12MP PoE NVR, delivering sharp, reliable surveillance you can trust.

8-channel PoE NVR supports up to 12MP recording for ultra-detailed footage, helping you identify faces and license plates clearly.
H.265 compression dramatically reduces storage and network bandwidth, so you can keep longer histories with fewer hard-drive visits.
3.5'' SATA hard drive storage (backup Type: Hard Drive) lets you upgrade capacity easily and manage recordings with compatible backup options.

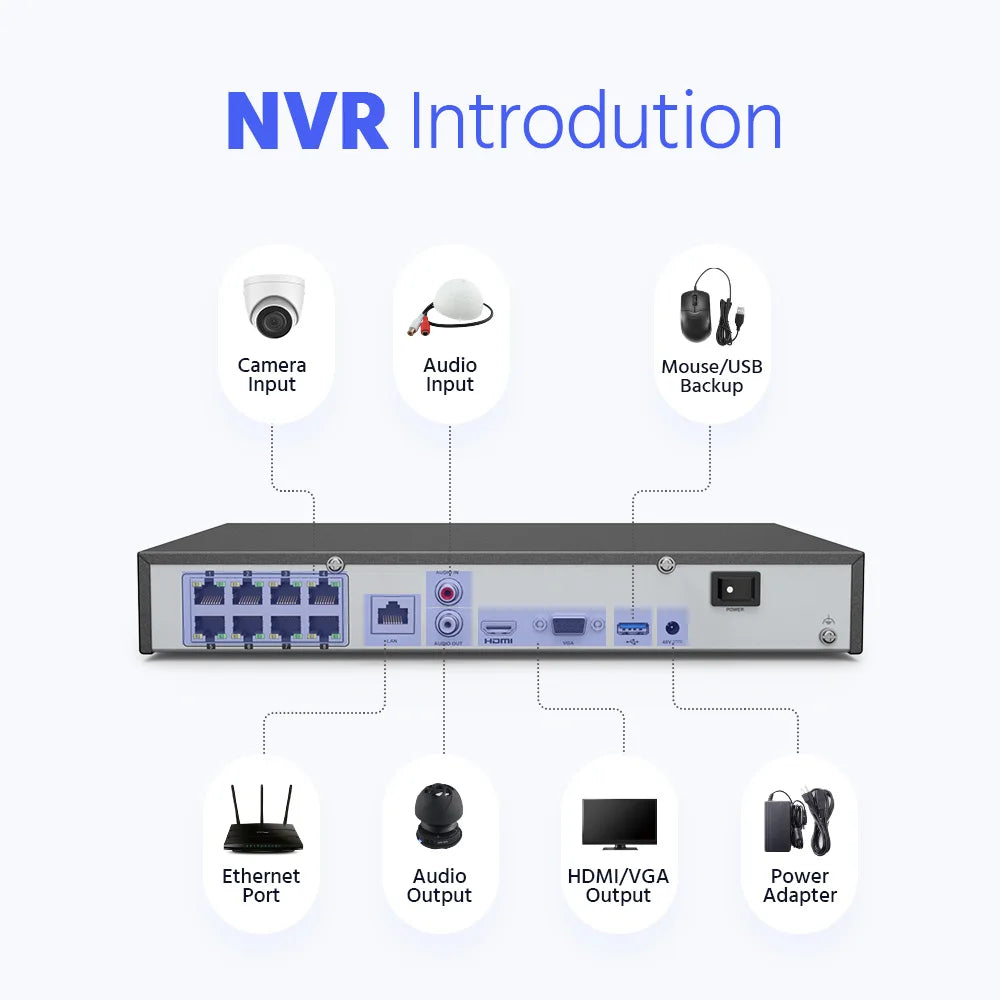

Audio and network flexibility with 1 RCA input and 1 RCA output, plus Dynamic IP address compatibility for quick network setup and reliable remote access.

Model Number		N98pbk
NVR
Video & Audio	Decoding Format	H.264+/H.264/H.265/H.265+
	IP Video Input	8CH PoE
	Video Output	HDMI up to 4K (3840 × 2160), VGA up to 1080p(1920 × 1080)
	Audio Input/Output	1/1 RCA
	Incoming/outgoing Bandwidth	80/80 Mbps
	Max Recording Resolution	Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera)
	Max Playback Resolution	Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera)
	Max Playback Channel	8CH
	Max Playback Capacity	1-ch@12 MP(4096 X 3072) (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
Hard Drive	HDD	1 SATA Interface
Hard Drive	HDD Capacity	Up to 8 TB Capacity
External Interface	Network Interface	1, RJ-45 10/100Mbps self-adaptive Ethernet interface
	PoE	8, RJ-45 10/100 Mbps self-adaptive Ethernet interface, IEEE 802.3 af/at
	USB interface	USB 2.0*2
Smart Function	Deep learning	8-ch Human and vehicle targets detection(Need IP camera support)
	Deep learning	4-ch Human and vehicle targets detection(IP camera does not need to support this function but the resolution cannot exceed 4MP)
	Smart Event	Line crossing detection, intrusion detection, region entrance detection, region exiting detection(Need IP camera support)
General	Operating Power	DC 48 V
	Power Consumption	≤10 W (Without HDD and PoE)
	Power Consumption	PoE: Max 25.5 W for Single Port
	Working Temperature	14 °F ~ 131 °F/-10 °C ~+55 °C
	Dimensions (W X H X D)	12.4” X 9.4” X 1.9”/315 X 240 X 48 mm
	Weight (Without Hard Disk)	2.2 lbs/1 kg

Model Number		N46PCK
NVR
Video & Audio	Video Compression	H.264+/H.264/H.265/H.265+
	IP Video Input	16CH PoE
	Video Output	HDMI up to 4K, VGA up to 1080p
	Audio Input/Output	1/1 RCA
	Incoming/Outgoing Bandwidth	160/80 M
	Max. Recording Resolution	Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera)
	Max. Playback Resolution	Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera)
	Max. Playback Channel	16CH
	Max. Playback Capacity	1-ch@12 MP(4096 X 3072) (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
Hard Drive	HDD	2 SATA Interface
Hard Drive	HDD Capacity	Up to 8 TB Capacity for each disk
External Interface	Network Interface	RJ45 X1 (10/100/1000 M)
	PoE	16, RJ-45 10/100 Mbps self-adaptive Ethernet interface, IEEE 802.3 af/at
	USB	2X USB 2.0
Smart Function	Deep learning	16-ch Human and vehicle targets detection(Need IP camera support)
	Deep learning	4-ch Human and vehicle targets detection(IP camera does not need to support this function but the resolution cannot exceed 4MP)
	Smart Event	Line crossing detection, intrusion detection, region entrance detection, region exiting detection(Need IP camera support)
General	Operating Power	AC 100-240 V
	Power Consumption	≤15 W (Without HDD and PoE)
	Power Consumption	PoE: Max. 25.5W for Single Port
	Working Temperature	14 °F — 131 °F/-10 °C — 55 °C
	Dimensions (W X H X D)	15.2” X 12.4” X 2.0”/385 X 315 X 52 mm
	Weight (Without Hard Disk)	6.6 lbs./3 kg
