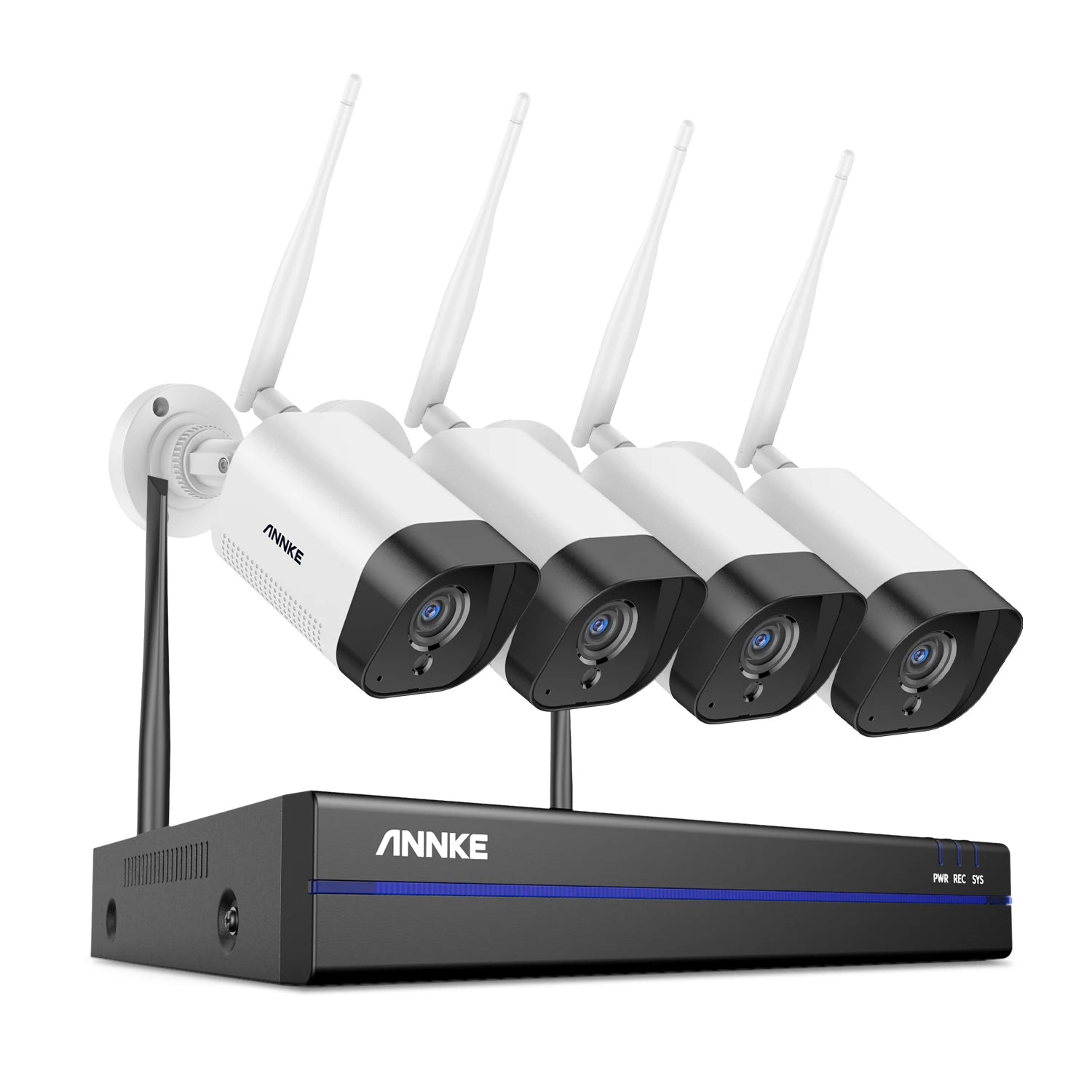

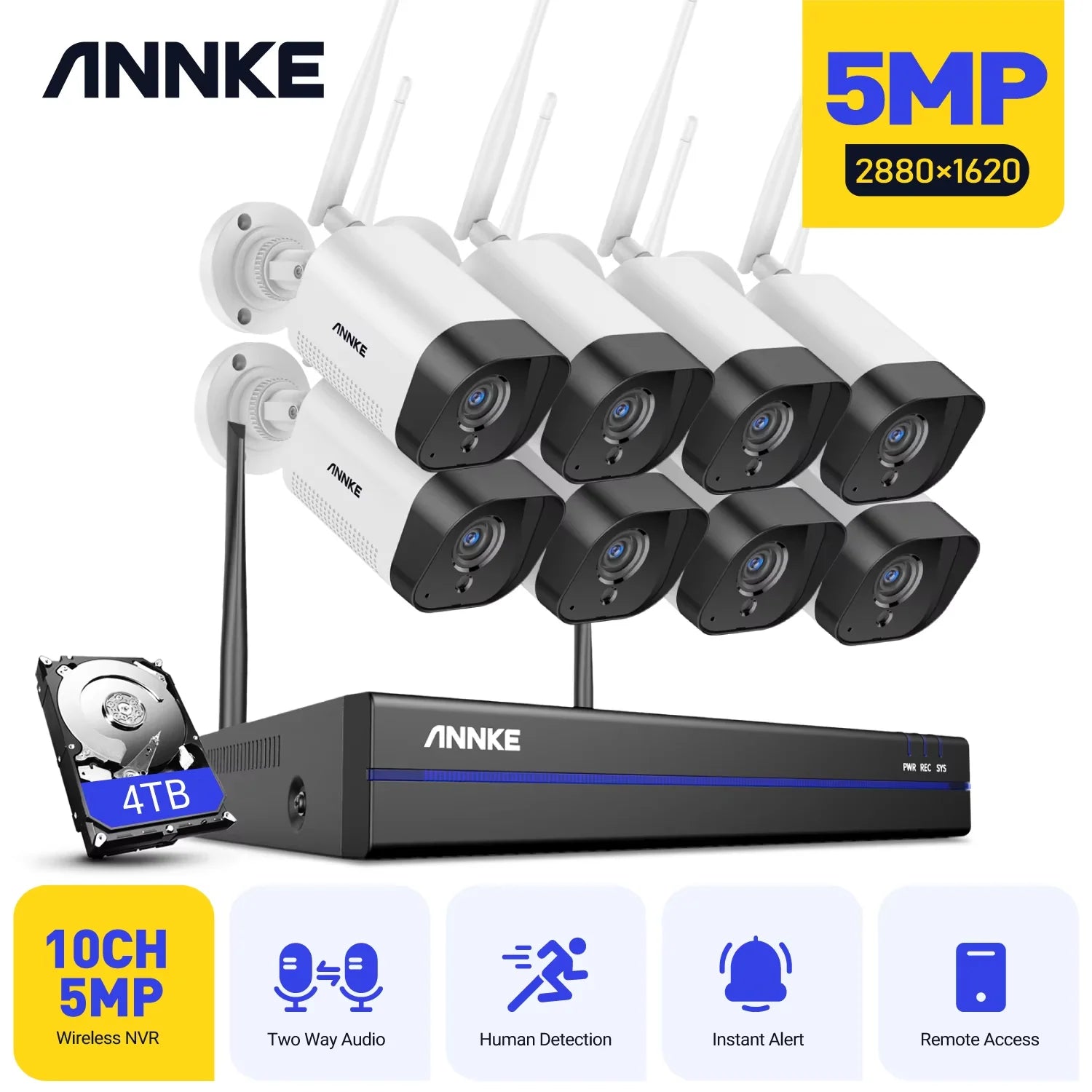

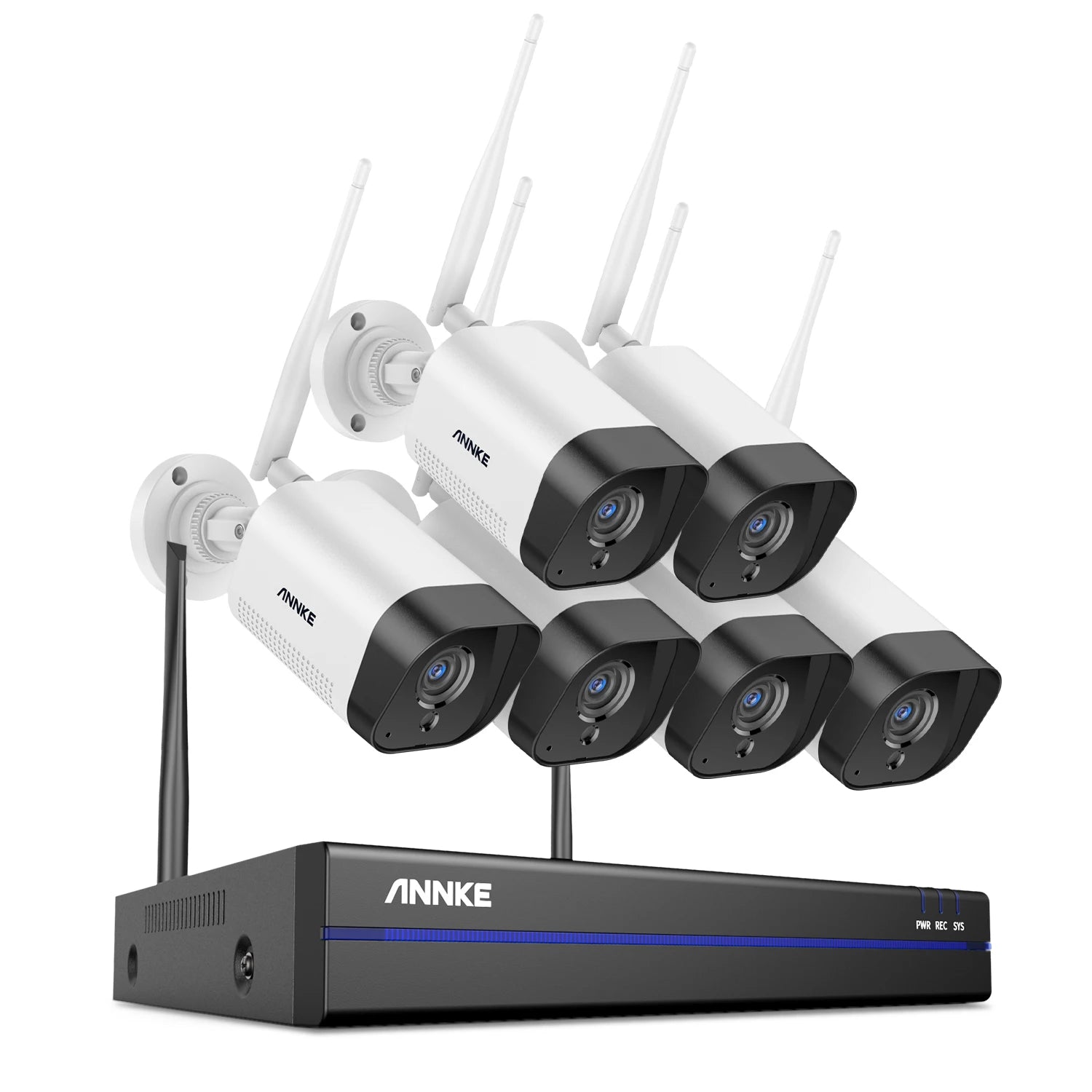

Annke WAS500 5MP Wireless CCTV System 8 Channel NVR Kit
Annke WAS500 5MP Wireless CCTV System 8 Channel NVR Kit
Couldn't load pickup availability
Capture crisp, reliable security footage with the Annke WAS500 5MP wireless CCTV system—an eight-camera NVR kit designed for seamless home or small-business surveillance.
- High‑resolution recording: You get crisp 5MP video from a 3.6 mm fixed lens and a 1/2.8" progressive scan CMOS for clear, detailed footage.

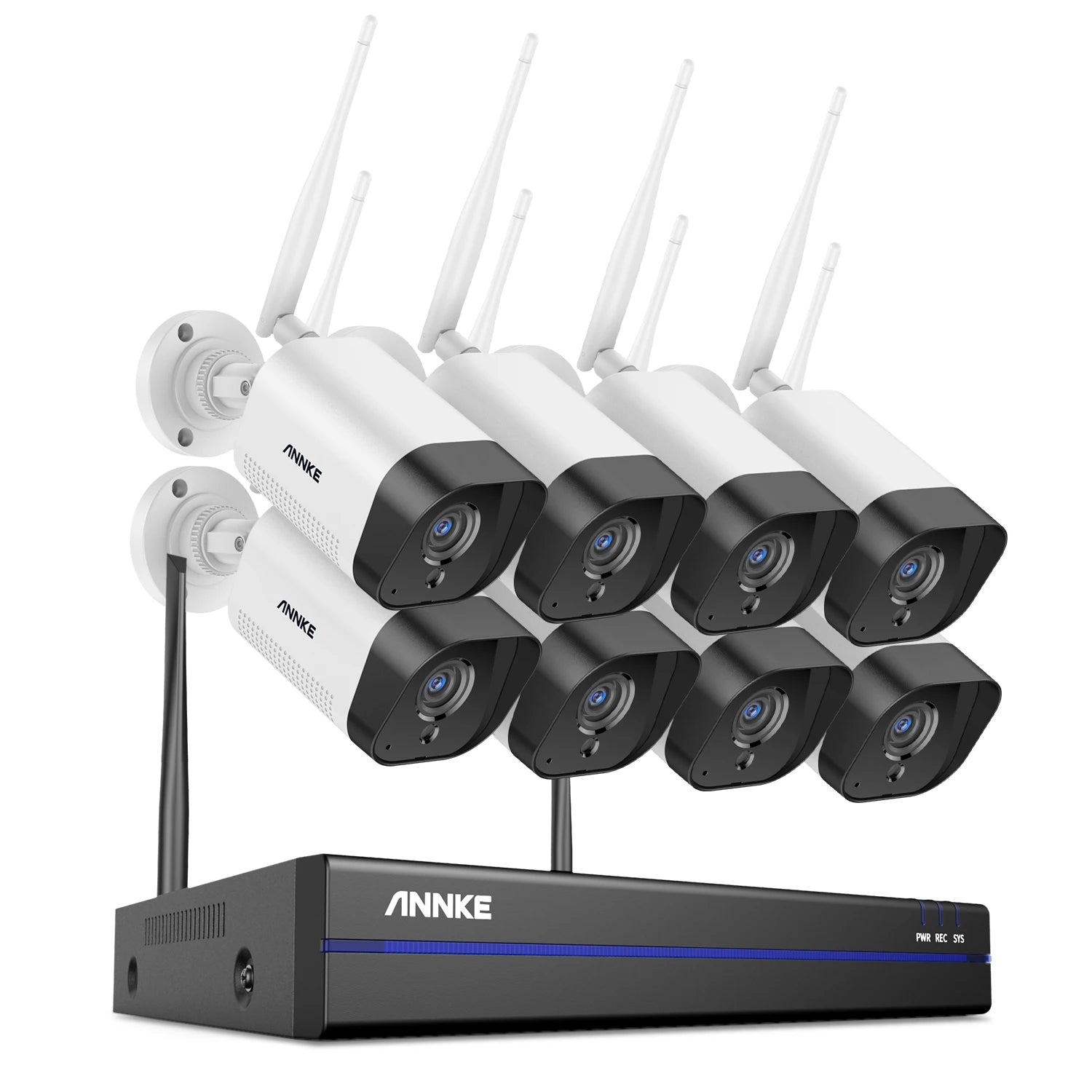

- Eight-camera, 8‑channel system: You can wirelessly connect eight cameras to a single NVR for simple setup and centralized monitoring across multiple zones.
- Reliable night vision: Your surveillance stays effective after dark with infrared night vision up to 100 ft (30 m) powered by two infrared LEDs.
- Safe and certificated: This kit carries CE and RoHS certifications, includes eight cameras (model N48WHR+I51CN*8), and supports up to 100 m of cabling for flexible installation.
Warranty | 1 Year | |
NVR | ||
Video Format | H.264+ | |
IP Video Input | 10CH Wireless | |
Video Output | HDMI and VGA Up to 1080P | |
Audio Output | Support | |
Max Recording Resolution | Up to 5M | |
Max Playback Resolution | Up to 5M | |
Max Playback Channel | 4CH | |
Max Playback Capacity | 4CH 3MP/2CH 5MP | |
Hard Drive | HDD | 1 SATA interface |
HDD Capacity | Up to 6TB capacity(3.5 inches) | |
| Network Interface | RJ45x1(10/100M) |
Wireless antenna | 2 Ports(IEEE802.11b/g/n) | |
USB | USB2.0x1 | |
General | Housing | Metal for mainpart |
Operating Power | DC12V | |
Power Consumption | 6 W (Without HDD) | |
Working Temperature | 14 °F ~ 131 °F/-10 °C ~ 55 °C | |
Dimensions (W X H X D) | 260 X 245 X 47 mm | |
Weight (Without Hard Disk) | 760 g (Without HDD) | |
IP Camera | ||
Camera | Video Resolution | 5MP (2880 X 1624) |
Image Sensor | 1/2.8" Progressive Scan CMOS | |
Video Compression | H.264+ | |
Audio Compression | G.711A | |
Lens | 3.6mm | |
Angle of View | 70° | |
Number of Infra-Red LEDs | 18 | |
Night Vision Distance | Up to 100ft/30m | |
IR-Cut Filter | Yes | |
Ethernet | RJ45x1(10M/100M) | |
Wireless | IEEE802.11b/g/n | |
General | Housing | Plastic for Main Part |
Operating Power | DC12V | |
Operating Temperature | -4 °F – 140 °F/-20 °C – 60 °C | |
Indoor/Outdoor | Indoor/Outdoor | |
Weatherproof Rating | IP66 | |
Dimension (L X W X H) | ||
Weight |
