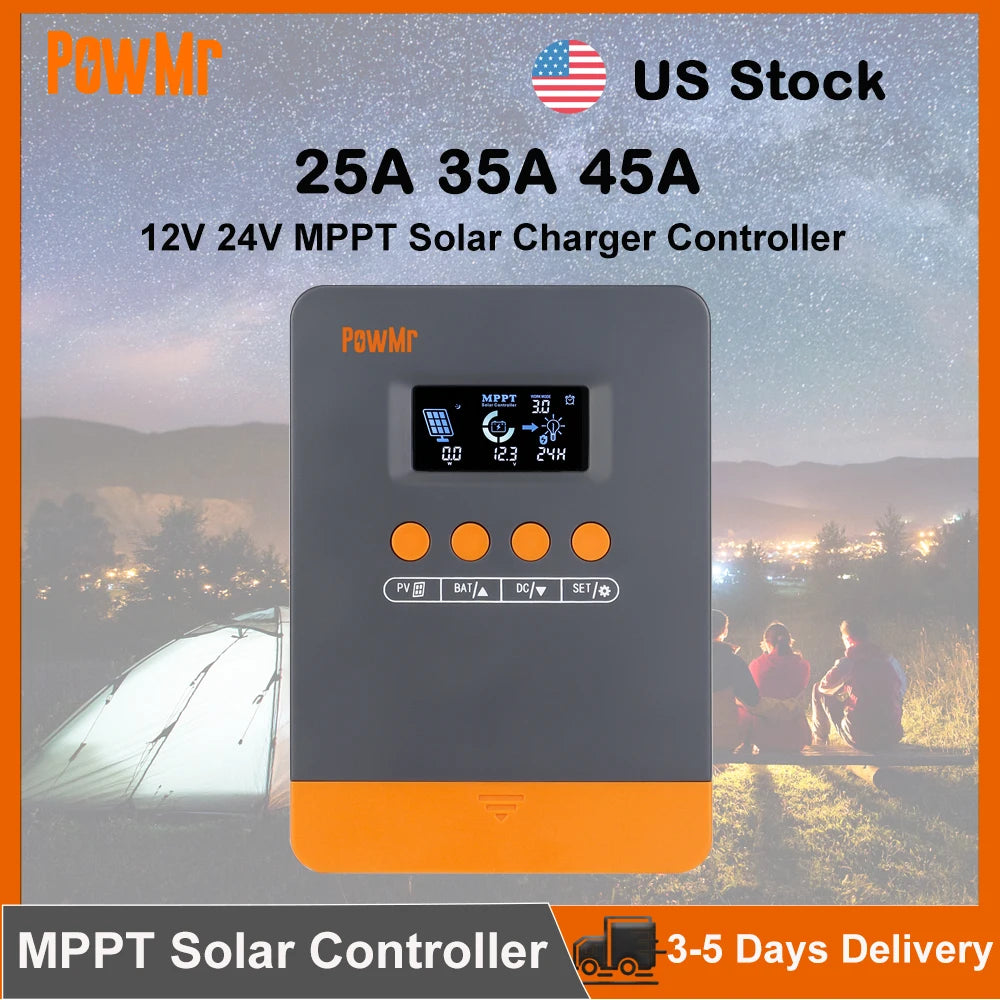

Maximize your solar harvest with the PowMr MPPT Solar Charger Controller, delivering smart, efficient power management for 12V/24V systems.
- Available in 25A, 35A, and 45A models for 12V/24V systems, letting you match your battery bank and solar array.

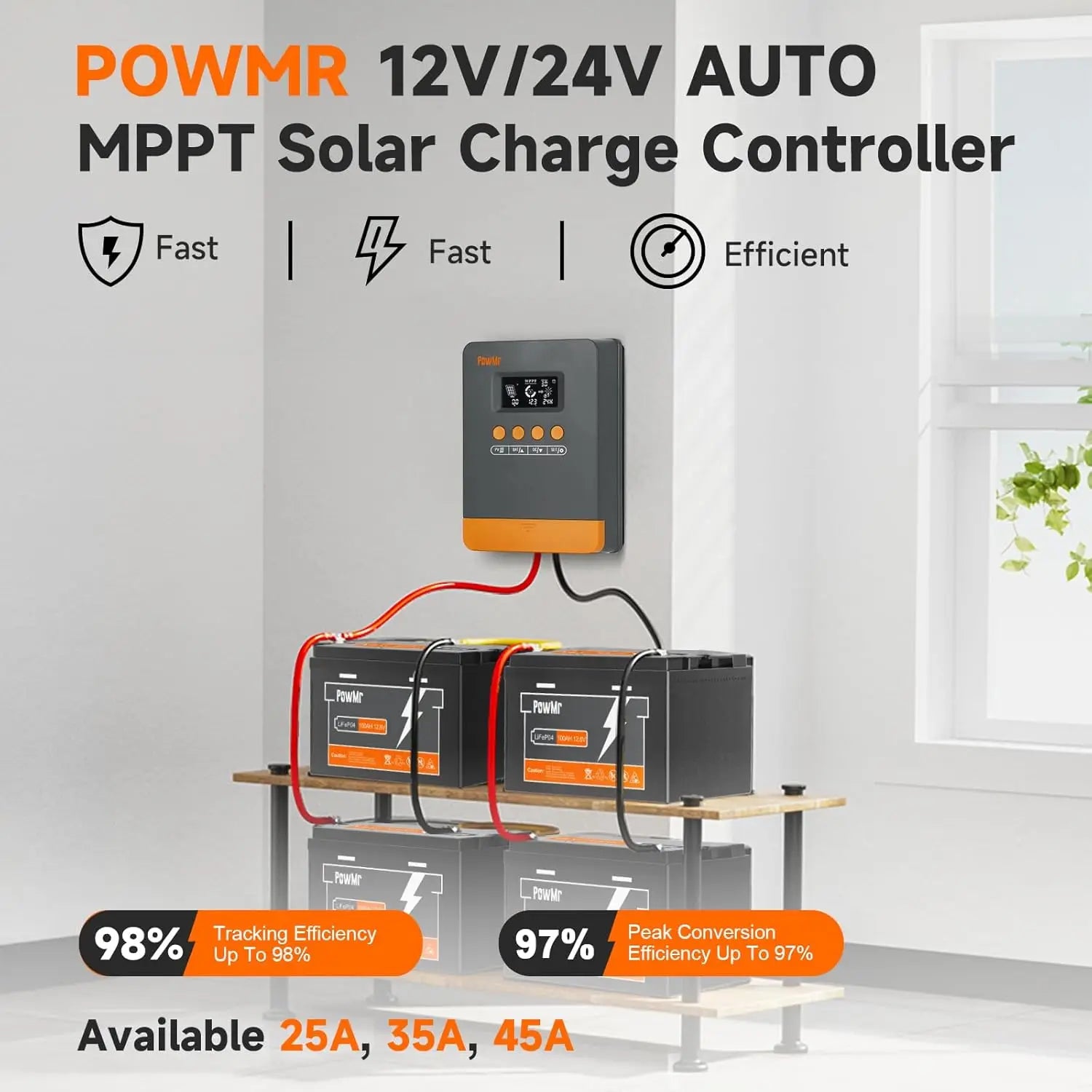

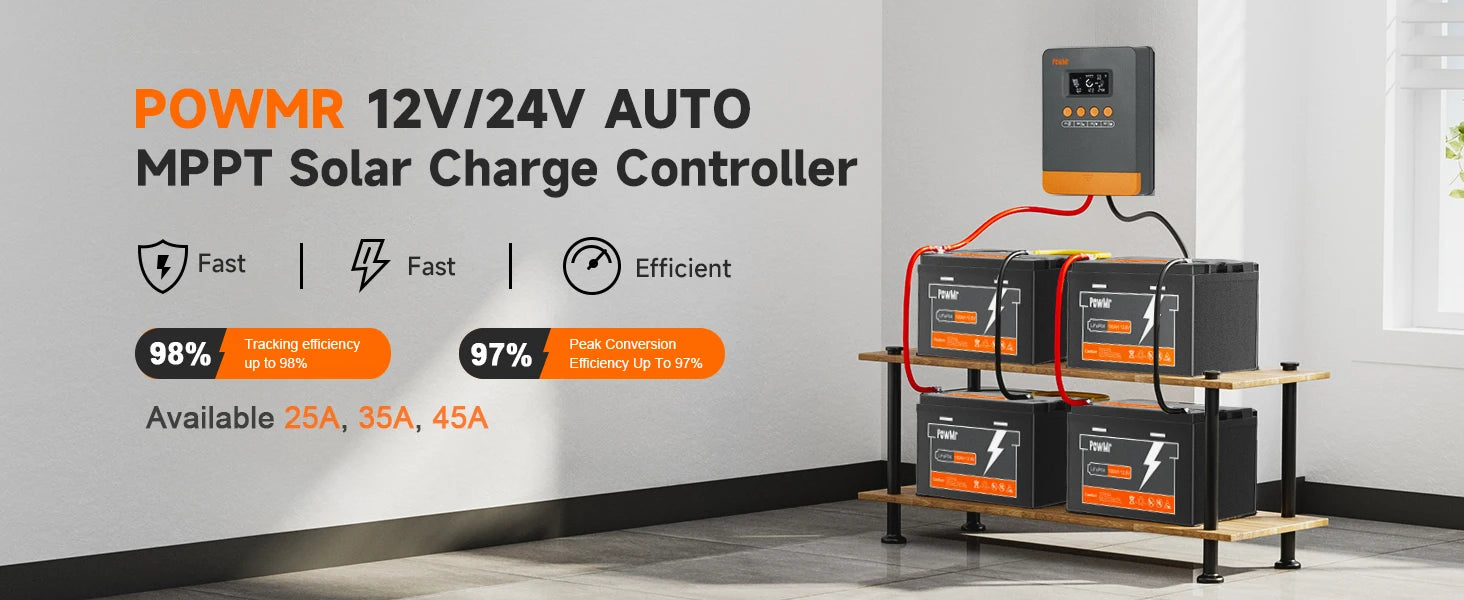

- MPPT tracking up to 99.9% and peak conversion up to 97%, with a 100V PV input limit and model‑dependent input power (12V: 300/420/540W; 24V: 600/840/1080W).
- Adaptive Boost Charging automatically tailors boost duration per cycle to fully charge without overcharging, protecting battery life.

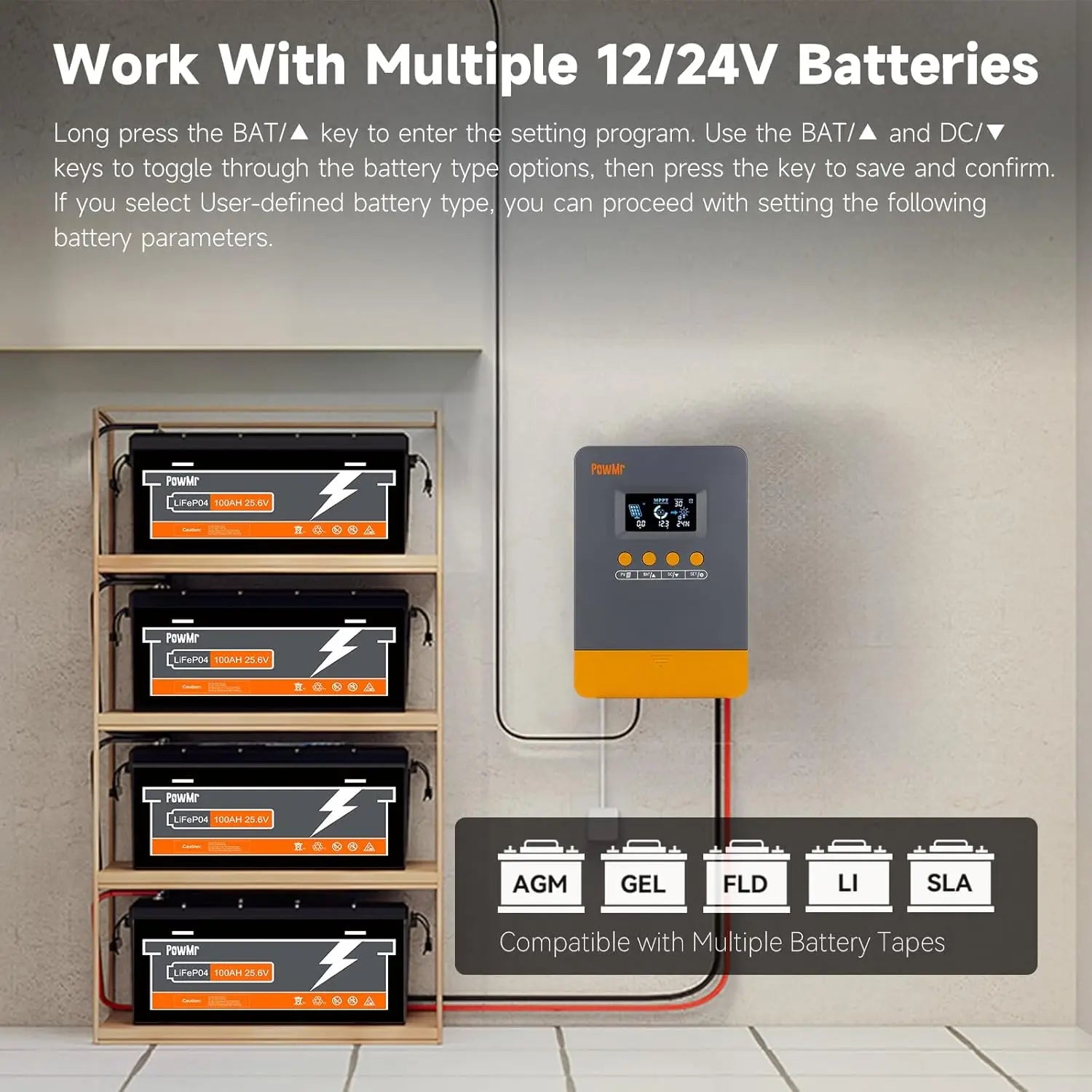

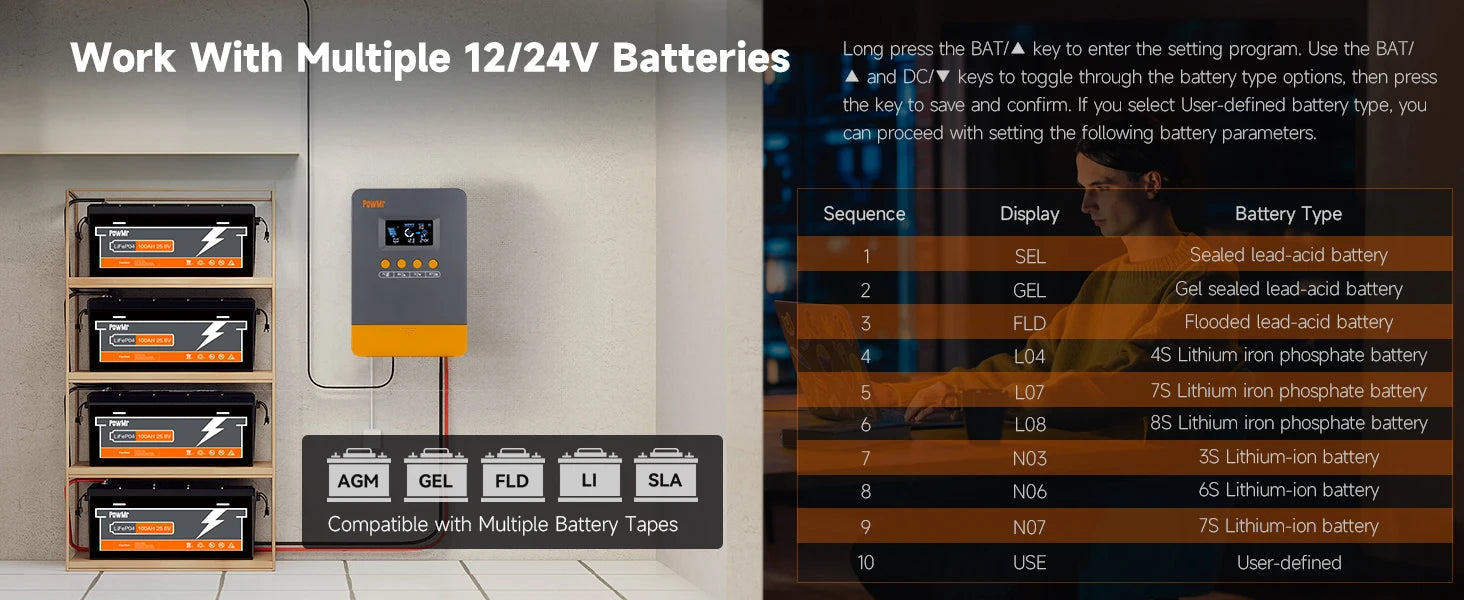

- 3-stage charging algorithm for efficient charging across 12V/24V, compatible with lead-acid and lithium chemistries; IP32, -35°C to 45°C, compact frame.
Models |
25A |
35A |
45A |
Solar Input Parameters |
Max. PV Open-Circuit Voltage |
100V |
|
Max. Input Power:
For 12V System
For 24V System
|
300W
600W
|
420W
840W
|
540W
1080W
|
|
Input Voltage Range:
For 12V System
For 24V System
|
<60V
<60V
|
<80V
<80V
|
<100V
<100V
|
Battery Charging Parameters |
Charging Technology |
MPPT |
Charging Algorithm |
3 Stages |
Nominal System Voltage |
12V/24V |
Battery Voltage Range |
9~30V |
Rated Charging Current |
25A |
35A |
45A |
Conversion Efficiency |
≤98% |
Max. Power Point Tracking Efficiency |
>99% |
Temperature Compensation |
-3mV/℃/2V (default) |
Self-Consumption |
44mA/12V; 26mA/24V |
DC Output Parameters |
Rated DC Output Current |
15A |
20A |
25A |
General Parameters |
IP Class |
IP32 |
Operating Temperature Range |
-35℃~+45℃ |
Humidity Range |
≤95% Non-condensing |
Altitude |
<3000m |

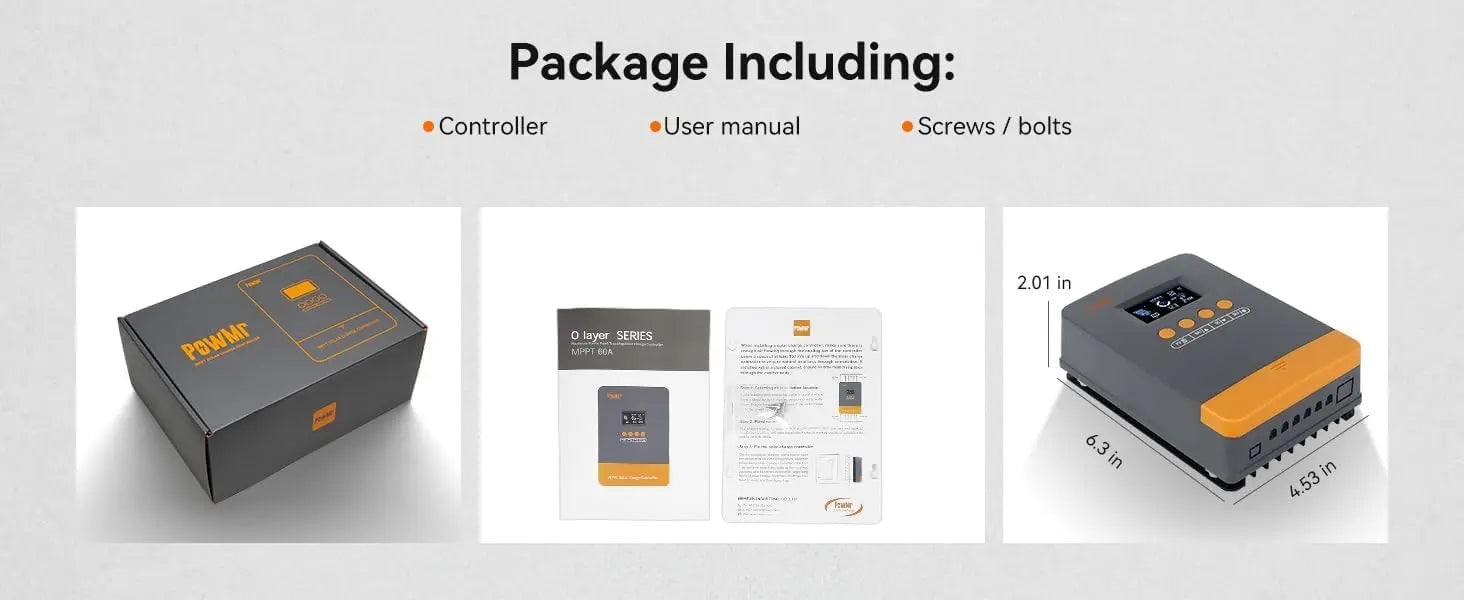

Dimensions |
160x115x51mm |
195x135x65mm |
195x135x65mm |
